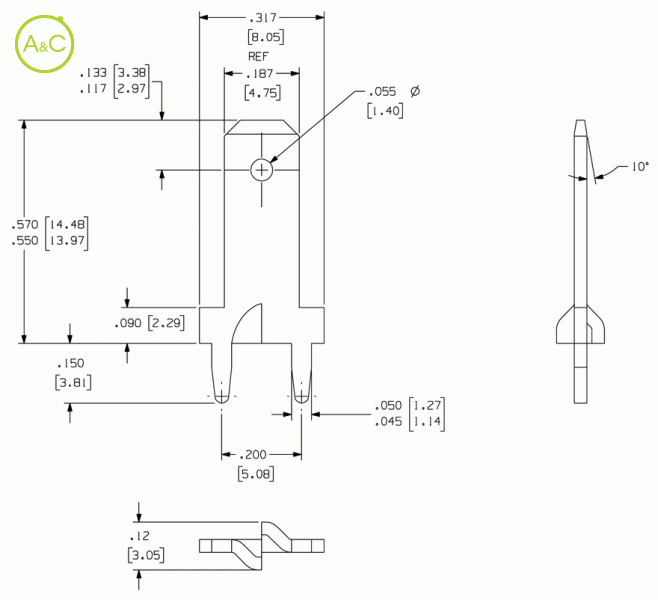

0.187" (4.75mm) Tabs / Quick Disconnect Terminals

  • Straight, 18.29 mm high

Packaging

  • Loose
  • Reeled
Article Number 1042
Extra Description Straight, 18.29 mm high
Material Thickness / Type 0.032" (0.81mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating Ul 20 Amperes
Current Rating C-ul 20 Amperes
Ul File Number E146208
Applicator System Loose: ZPT81-A Reeled: Model 9700, 9700 XY
Mounting Type Outward or Inward Splay
Mounting Hole Diameter 0.058" ±0.003" (1.47mm ±0.076mm)
Pieces Per Reel (loose Part No.) NA
Pieces Per Reel (reeled Part No.) /
Product sheet Download product sheet
Characteristics differ between variants of a connector
