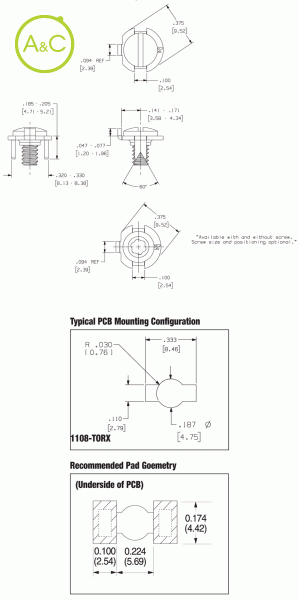

Screw Terminals / Binding Posts

Do you have any questions about this product?

Send me a personalized quote

Screw Type

  • 1/4" (6.35mm) x 6-32 Torx Head Screw
  • Stainless Steel Binding Head 1/4" (6.35mm) x 6-32
Article Number 1108 1108-GRSC*
Remark* / GRSC = green screw indicates it is a grounding screw
Packaging Loose Loose
Material Thickness / Type 0.032" (0.81mm) C26000 Brass 0.032" (0.81mm) C26000 Brass
Standard Finish 100% Tin over Copper 100% Tin over Copper
Current Rating 30 Amperes 30 Amperes
Screw Position Inserted, Staked and Down Inserted, Staked and Down
Pieces Per Reel (loose Part No.) NA NA
Pieces Per Reel (taped Part No.) / /
Product sheet / /
Characteristics differ between variants of a connector
