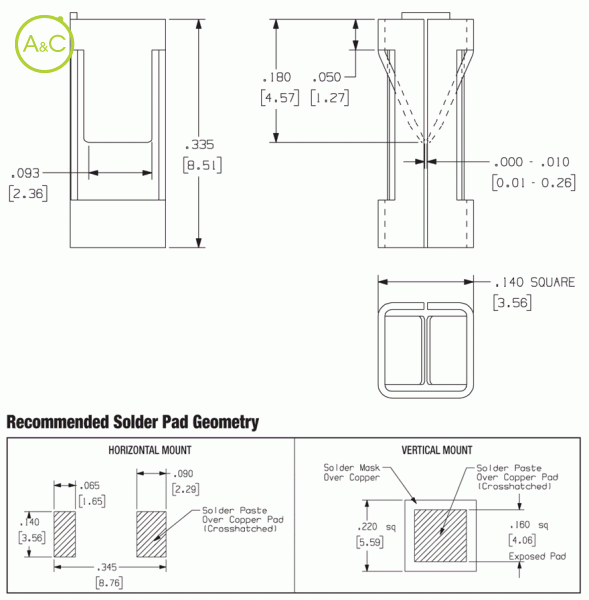

SMT Box Receptacles for High Temp Applications
Do you have any questions about this product?
More info on this brand:
Zierick
Zierick
Packaging
- Loose
- Reeled
- Taped
| Article Number | 1275 |
| Mating Terminal Size | 0.025" (0.64mm) to 0.095" (2.41mm) round or square and 0.032" (0.81mm) x 0.110" Blade |
| Material Thickness / Type | 0.010" (0.25mm) C70250 High Performance Alloy |
| Standard Finish | 100% Tin over Copper |
| Current Rating Ul | 17 Amperes |
| Current Rating C-ul | 17 Amperes |
| Feeder System | Surf-Shooter SMT ™Continuous Strip Feeder. Standard 24mm Tape Feeder |
| Ul File Number | E361770 |
| Resistance Rating | 10mΩ Max |
| Mating Entry | Top and Bottom |
| Temperature Rating | Up to 175°C |
| Pieces Per Reel (loose Part No.) | NA |
| Pieces Per Reel (reeled Part No.) | / |
| Pieces Per Reel (taped Part No.) | / |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
