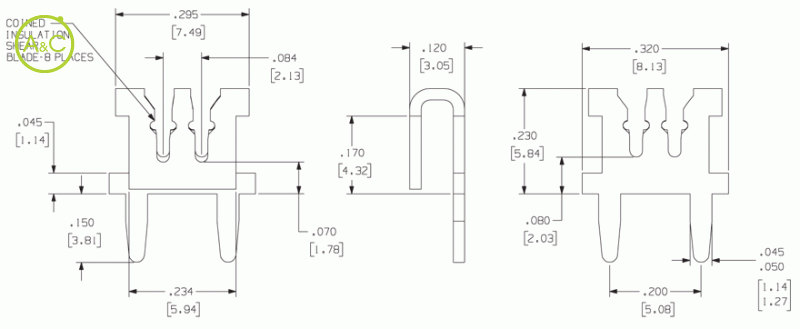

IDC For #19-18 AWG Magnet Wire
Do you have any questions about this product?
More info on this brand:
Zierick
Zierick
- General
| Article Number | 6072 |
| Packaging | Reeled |
| Material Thickness / Type | 0.025" (0.64mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper |
| Current Rating | 15 Amperes |
| Applicator System | Reeled: Model 9700, 9700 XY Wire Termination: Consult factory. |
| Mounting Type | Outward or Inward Splay |
| Mounting Hole Diameter | 2 holes 0.058" ±0.003" (1.47mm ±0.076mm) on 0.200" (5.08mm) centers |
| Wire Gauge Range | #19-18 AWG Magnet Wire |
| Pieces Per Reel (reeled Part No.) | 7000 |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
