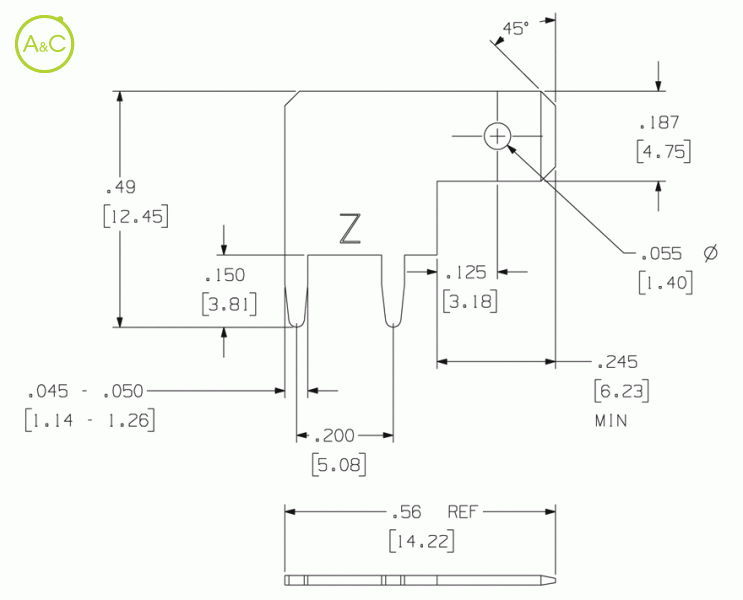

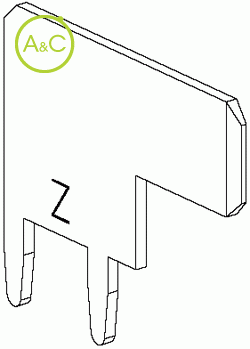

0.187" (4.75mm) Tabs / Quick Disconnect Terminals

  • Angled

Material Tickness

  • 0.020" (0.51 mm
  • 0.032" (0.81mm)
Article Number 956
Packaging Loose
Extra Description Angled
Material Thickness / Type 0.020" (0.51mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating Ul 20 Amperes
Current Rating C-ul 20 Amperes
Ul File Number E146208
Applicator System ZPT92-187
Mounting Type Outward or Inward Splay
Mounting Hole Diameter 0.050" ±0.003" (1.27mm ±0.076mm)
Pieces Per Reel (loose Part No.) NA
Product sheet Download product sheet
Characteristics differ between variants of a connector
