Screw Terminals / Binding Posts

Do you have any questions about this product?

Send me a personalized quote

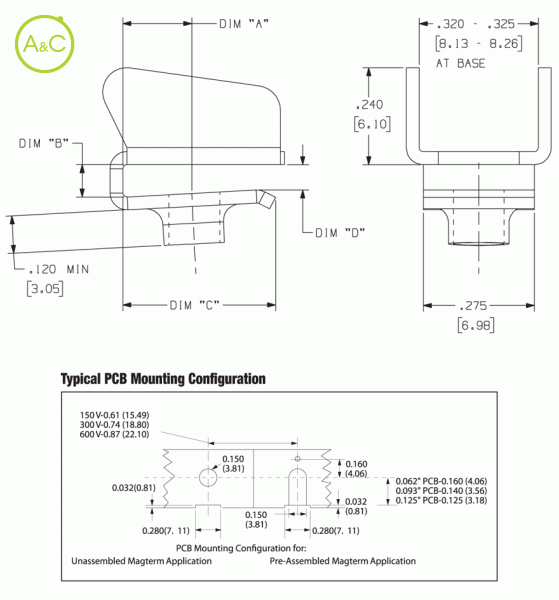

Dimension "a"

  • 0.145" (3.68mm)
  • 0.160" (4.06mm)
Article Number M6111
Remark* Screws and wire must be ordered separately
Packaging Loose
Dim A 0.160" (4.06mm)
Dim B 0.070"/0.075" (1.78mm/1.91mm)
Dim C 0.380" (9.65mm)
Dim D 0.048"/0.058" (1.22mm/1.47mm)
Material Thickness / Type 0.032" (0.81mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating 30 Amperes
Pieces Per Reel (loose Part No.) NA
Product sheet Download product sheet
Characteristics differ between variants of a connector
