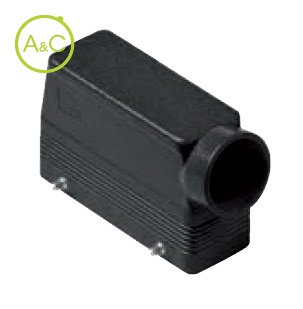

Hoods with pegs

  • Side entry
  • Aluminium, Metric entry

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

Entry

  • 1xM25
  • 1xM32
Article Number MHOW 24.25
Protection Degree IP66
Material Housing Aluminium
Height 63 mm
Length 120
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CME 10+2 (aux)P + PE; CMCE 10+2 (aux) + PE; CMSH 10+2 (aux) + PE; CMCE 16+2 (aux)P + PE; CME 16+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 43 mm
Characteristics differ between variants of a connector
Accessoires
CHCW 24 G
Cover with 2 levers
