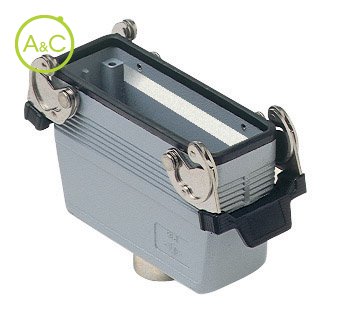

Hoods with 2 levers and gasket, high construction

Top entry
Aluminium, Metric entry

MMAV 16 G25

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Entry

1xM25
1xM32

Article Number	MMAV 16 G25
Protection Degree	IP66
Material Housing	Aluminium
Height	97 mm
Length	120
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 10+2 (aux)P + PE; CMCE 16+2 (aux)P + PE; CME 16+2 (aux)P+ PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	59 mm

Article Number	MMAV 16 G32
Protection Degree	IP66
Material Housing	Aluminium
Height	97 mm
Length	120
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 10+2 (aux)P + PE; CMCE 16+2 (aux)P + PE; CME 16+2 (aux)P+ PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	59 mm

Characteristics differ between variants of a connector
