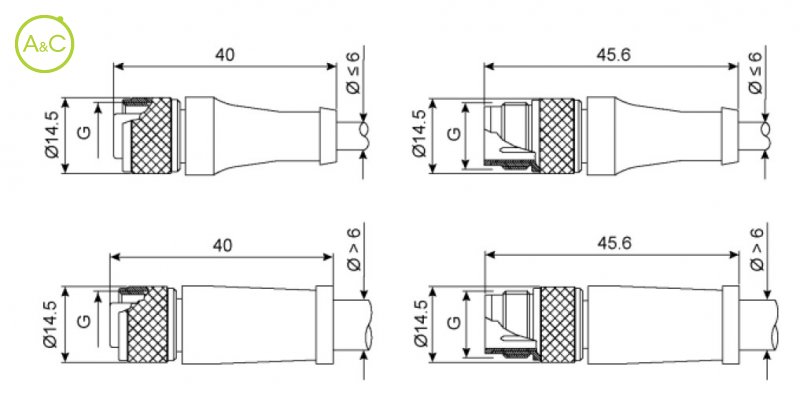

Male round connector

  • without electronic

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

Number Of Poles

  • 3
  • 4
  • 6
Article Number RCLM 00335 414 3000
Number Of Contacts 3
Protection Degree IP65*
Upper Temperature 90 °C
Lower Temperature -40 °C
Housing Material TPU
Circuits without electronic
Housing Oil Resistance Very good
Contact Material Golden over nickel plated CuZn
Locking Nut Material Brass nickel plated
Voltage Vdc 1 to 250
Voltage Vac 1 to 250
Max. Currrent 4 A @40°C
Housing Colour Black
Contact Gender M
Ground Pole Yes
Max. Number Wires 3
Wire Colour bn3, bu2, gn/ye-PE
Coding C
Remark* The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Characteristics differ between variants of a connector
