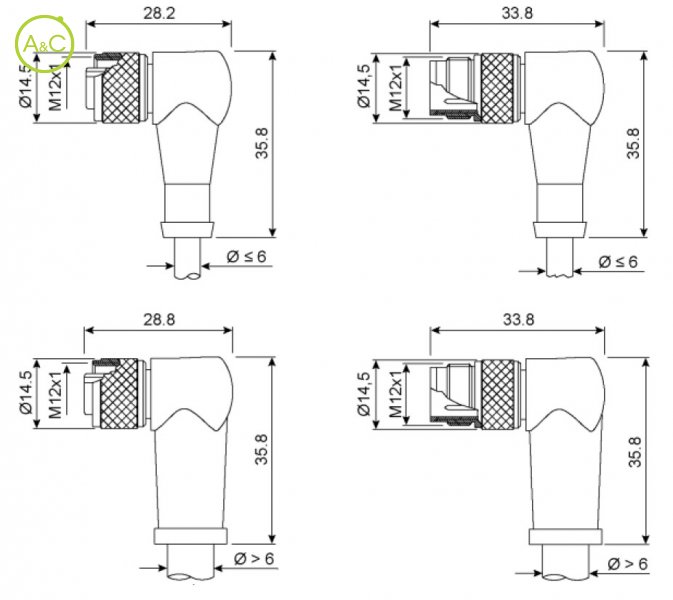

Female round connector

  • without electronic
Download product sheet

Number Of Poles

  • 4
  • 5
  • 8
  • 12
Article Number RDMF 20400 374 3000 RDMF 30400 374 3000
Number Of Contacts 4 4
Protection Degree IP65* IP65*
Upper Temperature +90 °C +90 °C
Lower Temperature -40 °C -40 °C
Housing Material TPU TPU
Circuits without electronic without electronic
Housing Oil Resistance Very good Very good
Contact Material Golden over nickel plated CuZn Golden over nickel plated CuZn
Locking Nut Material Brass nickel plated Brass nickel plated
Voltage Vdc 1 to 250 1 to 250
Voltage Vac 1 to 250 1 to 250
Max. Currrent 4 A @40°C 4 A @40°C
Housing Colour Black Black
Contact Gender F F
Shielding not connected connected to nut with 360° covering
Ground Pole No No
Max. Number Wires 4 4
Wire Colour bn1, wh2, bu3, bk4 bn1, wh2, bu3, bk4
Coding A A
Remark* The protection degree level is guaranteed only when correctly assembled with Shield's couterpart The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Characteristics differ between variants of a connector
