Female Terminal AWG 22 to 20
Do you have any questions about this product?
More info on this brand:
JST
JST
Applicable Wire
- AWG 22 to 20
| Article Number | SNAC-A03T-M040 |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| General Description | Disconnectable Crimp Style |
| Applicable Wire Size | 0.3 to 0.5 (AWG #22 to #20) mm² |
| Connection Type | Automotive |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 5 A |
| Rated Voltage (ac/dc) | 14 V |
Characteristics differ between variants of a connector

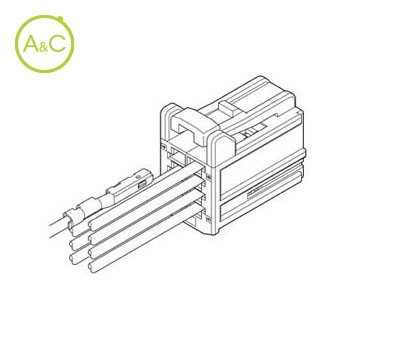

Low profile dual row connector compliant with the USCAR performance specifications.
For general automotive applications.
Compact design, Independent secondary lock (Terminal Position Assurance)
Accept 0.64 to 1.2mm Blade
2x4 circuit design
Standards
USCAR
RoHS Compliant
