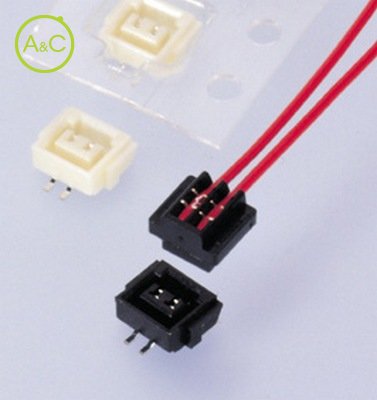

Receptacle AWG#30 Natural

  • ASR CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 2
  • 3
  • 4
Article Number 02ASR-30S
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1mm Pitch Disconnectable IDC
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.00 mm
Rated Current (ac/dc) 0.7 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes

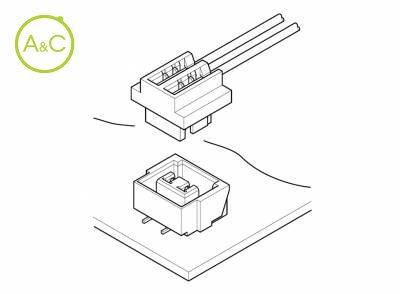

Ultra-compact. Twin U-slot ID section. Header designed for vacuum pick and place robotics. Compact This connector is very small, with a mounting height of 3.5mm (.138") and a thickness of just 3.6mm (.142"). As this is the right angle type connector, handling is easy yet still low profile. Twin U-slot insulation displacement section The insulation displacement section to which the wire is connected is composed of two highly reliable tin-plated slots (twin U-slots). 3-Point grip construction The 3-point insulation grip feature and the strain relief ensure a firm grip on terminated wires and protection of the insulation displacement connection from possible damage. Header designed for vacuum pick and place robotics Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
