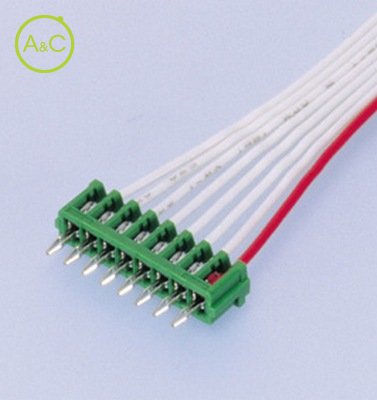

Connector AWG#28 Green

  • DA CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
Article Number 02DA-8M
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2mm Pitch Board-in IDC
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.00 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 100 V
Pcb Mount Style Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes

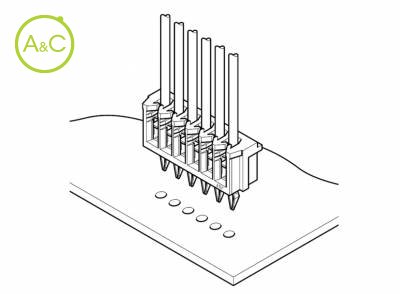

The board insertion section of the contact is resilient to ensure easy and secure insertion onto PC boards. The DA connector is interchangeable with the SAN crimp style board-in connector in terms of insertion hole size and pitch. Compact and low profile The connector is very small, with a mounting height of 5.0mm (.197") and a thickness of 4.0mm (.157"). Twin U-slot insulation displacement section The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connection. Easy mounting onto printed circuit boards The board insertion section of the contact is resilient to ensure easy and secure insertion onto printed circuit boards. Strain relief The housing has a strain relief that grips the wire insulation to ensure that the gas tight connection will not be degraded by excessive vibration or tension. Interchangeability The DA connector is interchangeable with the 2.0mm (.079") pitch crimp style board-in connector (SAN connector) in terms of insertion hole size and pitch. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
