Connector AWG#24 Black

  • DB CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
Article Number 02DB-4K
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.5mm Pitch Board-in IDC
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 2 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes

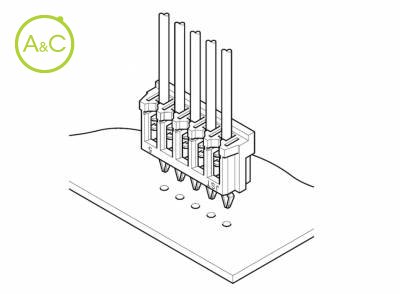

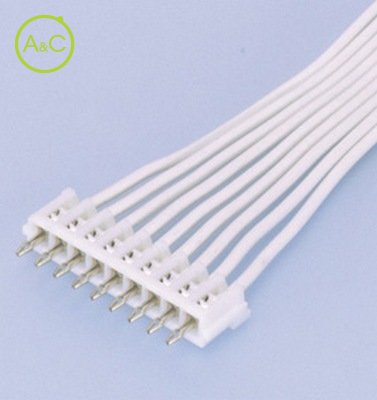

This is a 2.5mm (.098") pitch insulation displacement connector that is soldered directly onto printed circuit boards, with a mounting height of 7.1mm (.280") and with a width of 4.1mm (.161"). The DB connectors can be used by themselves or in combination with the NR or HR connectors. Compact and low profile This is a low profile connector with a mounting height 7.1mm (.280") and a width of 4.1mm (.161"). Twin U-slot insulation displacement section The insulation displacement section connected to the wire consists of two tin-plated slots (twin U-slot) for superb reliability. Locking solder tail The contact's compliant solder tail has two locking positions, both of which ensure stable connection once inserted into a printed circuit board. This makes insertion into printed circuit boards easy and reliable. Strain relief The strain relief feature prevents stress due to vibration, impact or bending from effecting the insulation displacement connection. This is accomplished by holding the outside of the wire with the insulation gripping device on the housing. To ensure circuit integrity against vibration and undue tension, ample clearance is provided between the insulation displacement connection and the strain relief. Interchangeability The DB connector has the same board layout and hole size as crimp style SBN and SCN connectors. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
