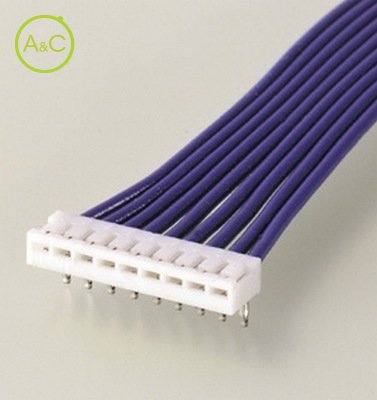

Housing for SJN Connector

  • SJN CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 2
  • 3
  • 4
  • 6
  • 7
  • 8
  • 9
  • 10
Article Number 02P-SJN
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2mm Pitch Board-in Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.00 mm
Rated Current (ac/dc) 2 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes

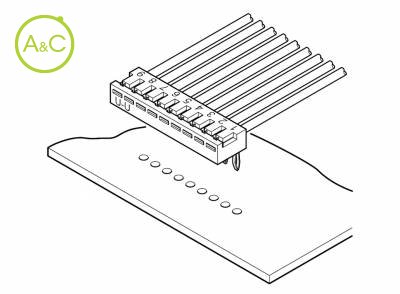

Side entry type board-in connector, with a mounting height of only 2.8mm (.110") and a thickness of 4.9mm (.193") Housing lances The lances on the resilient housing ensure easy insertion and secure locking of the contact into the housing. Easy mounting onto printed circuit boards The solder tail of the contact is resilient so as to ensure easy assembly and provide a secure lock of the connector in the printed circuit board prior to soldering. The spring members of the solder tail are joined together at the top to prevent opening of deformation and to ensure easy handling. Standards UL Recognized E60389 RoHS Compliant
