Receptacle AWG#32 Natural

  • SUR CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 8
  • 10
  • 12
  • 14
  • 15
  • 16
  • 17
  • 20
  • 22
Article Number 02SUR-32S
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.8mm Pitch Disconnectable IDC
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.80 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 30 V
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes

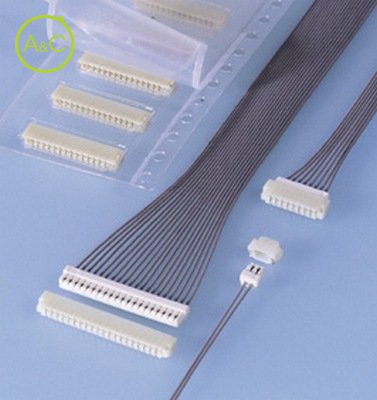

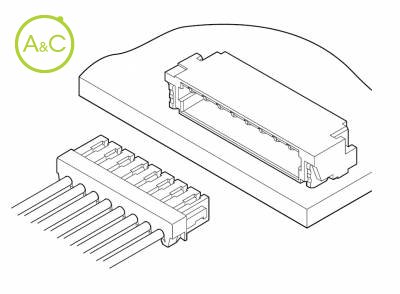

The worlds first 0.8mm (.031") pitch wire-to-board insulation displacement connector. Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum pick and place equipment. 3-point grip construction The 3-point insulation grip feature and the strain relief ensure a firm grip on terminated wires and protection of the insulation displacement connection from possible damage. Super fine wires are applicable Applicable wire is of AWG #32 with only 0.38mm (0.15") O.D. With this super fine wire, routing of wires is easy. Shrouded header The header is fully shrouded, but remains thin. Twin U-slot insulation displacement section The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connection. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
