Socket for XSR Connector

  • XSR CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 2
  • 4
  • 6
  • 10
  • 16
  • 20
  • 22
Article Number 02XSR-36S
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.6mm Pitch Disconnectable IDC
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.60 mm
Rated Current (ac/dc) 0.2 A
Rated Voltage (ac/dc) 30 V
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes

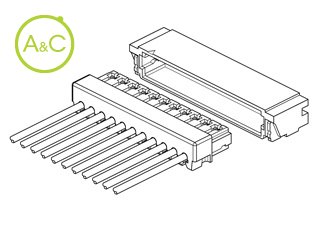

This is the world's smallest 0.6mm pitch ID connector for deSCrete wires. This wire to board miniaturized connector has a mounting height of 1.45mm and depth of 3.0mm. Space saving Twin U-slot insulation displacement section New strain relief structure Suitable for fine wires Applicable to automatic ID machines Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
