Connector Reverse Type

  • FKZ CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 5
  • 6
  • 8
  • 12
  • 13
  • 14
  • 16
  • 18
  • 19
  • 20
  • 22
  • 24
  • 26
  • 27
  • 28
  • 30
  • 32
Article Number 05FKZ-RSM1-1-TB
Number Of Contacts 5
Upper Temperature +85 °C
Lower Temperature -25 °C

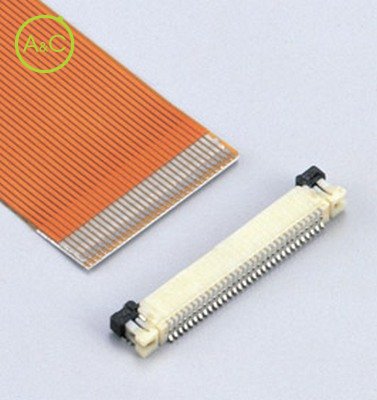

General Description 0.5mm Pitch ZIF Connector For FPC
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.50 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes

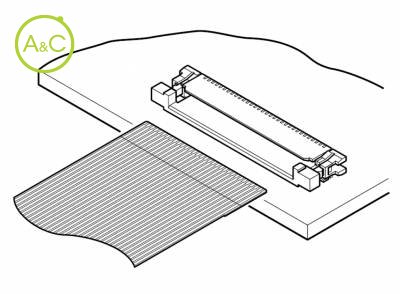

Available both in normal type and reverse type. Space saving The depth is 3.5mm (.138") for the connectors of 25 circuits or less, and 4.0mm (.157") for 26 circuits or more. Low profile Only 1.8mm (.071") height after mounted on the PC board. Zero insertion force mechanism A ZIF mechanism increases wear resistance and extends the connector's mating life. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
