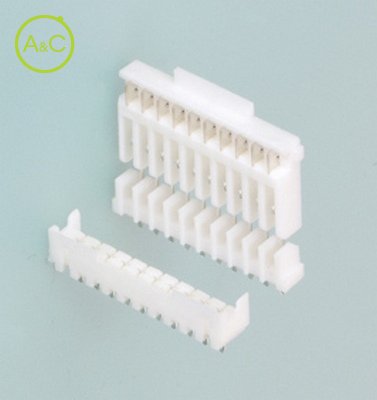

Receptacle for 2.5FJ Connector

  • 2.5FJ CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 5
  • 10
Article Number 05R-2.5FJ
Number Of Contacts 5
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.5mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes

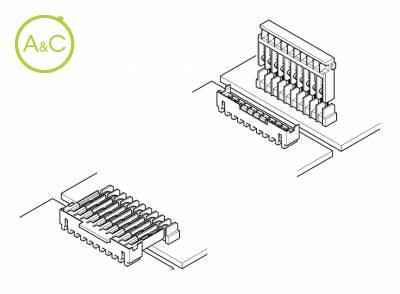

The 2.5FJ connector is a 2.5mm (.098")pitch board-to-board connector. The connector halves can be mated after the installation of the printed circuit boards in their enclosure. Flexible connection absorbs circuit board misalignment After the plug and header are mounted on adjoining boards, an extended flexible connection between them offers greater freedom of design. The flexible connector compensates for secure connection even if the boards are out of line up to 1.0mm (.039"). Provides a low profile mount and allows connection after mounting This compact, low profile design feature a 2.5mm (.098") pitch and slim 6.0mm (.236") mounting height. Board-to-board connection is easier because the connection can be made after the installation of the printed circuit boards in their enclosure. Assures a reliable connection Superior reliability is assured even if the assembly is subjected to external stress and vibration. This sturdiness is due to asecure locking device and the use of JST's high-retention zigzag fork contacts. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
