Connector for FLT Connector

  • FLT CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 6
  • 8
  • 10
  • 12
  • 14
  • 16
  • 18
  • 20
  • 22
  • 24
  • 26
  • 28
  • 30
  • 32
  • 40
Article Number 06FLT-SM2-TB
Number Of Contacts 6
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.5mm Pitch Non-ZIF Connector For FPC
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.50 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes

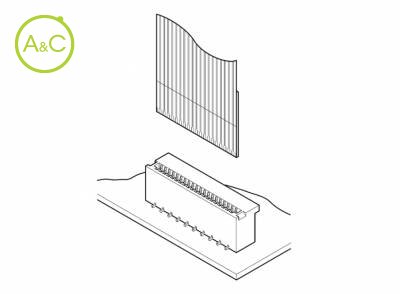

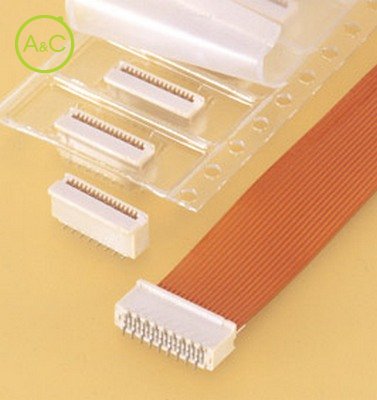

Top entry type. The housing is made of heat resistant plastic to allow reflow soldering. Staggered surface mount tails. Low insertion force with staggered mating points design. Heat resistant design suitable for surface mounting The housing is made of heat resistant plastic to allow reflow soldering. Staggered surface mount tails The lead pitch is thus 1.0mm (.039"), which enables connector mounting operation easier. Embossed tape for automatic mounting The FLT connector is packaged in embossed tape for automatic mounting. The plastic reel can be used repeatedly, good for eco-system. FPC insertion is easy Staggered and unique contact point layout can reduce the FPC insertion force, yet with secure retention force. Compact design The connector measures only 4.15mm(.163") high after mounting, with a reduced surface mounting area, as solder tabs are not necessary because of the staggered solder tail construction. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
