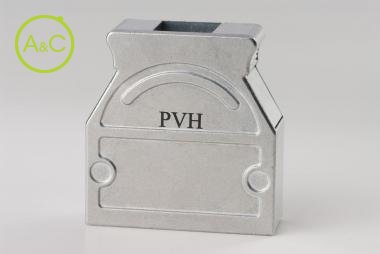

Diecast hood with 2-3 cable outputs slide-/clip locking

  • Hoods as single parts
Télécharger la fiche produit

Number Of Poles

  • 9
  • 15
  • 25
  • 37
  • 50
Article Number 07 09 DC 000
Number Of Contacts 9
Upper Temperature +90 °C
Lower Temperature -20 °C
Remark* Crimping flange must be ordered seperately
Material zn alloy
Extra Information Easy assembling by pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjuntion with crimp flange Multi opening possible
Locking Style Slide lock Clip lock
Cable Exit Straight 180° Angled: 2x30°
Cable Fixing Crimp flange
Cable Diameter Crimping Flange 2,7-8,7
Material/surface Locking Screws Diecast ST tin plated
Material/surface Cover Screws ST Zinc plated
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
KT 07 KB
Cable bushing for series 7,103,104,07DC,17DC,47DC,77DC,101DC,104DC
KT 07 GB
Cable bushing for series 7,103,104,07DC,17DC,47DC,77DC,101DC,104DC
5815GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5815KDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5825GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5837GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5850GDC
Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
5850KDC
Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
5850LDC
Cable clamps for series 07,103,104,07DC,17DC,104DC,117DC
