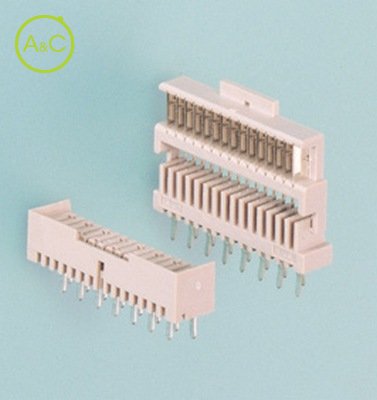

Plug For 1.25FJ Connector

  • 1.25FJ CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 7
  • 9
  • 11
  • 13
  • 15
  • 19
  • 21
Article Number 07P250K-1.25FJNA 07P280K-1.25FJN
Number Of Contacts 7 7
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description 1.25mm Pitch Board-to-Board Connector 1.25mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style 1.25 mm 1.25 mm
Rated Current (ac/dc) 0.5 A 0.5 A
Rated Voltage (ac/dc) 50 V 50 V
Pcb Mount Style Through-hole Technology (THT) Through-hole Technology (THT)
Remark* 250 type 280 type
Les propriétés diffèrent selon les variantes et sous-variantes

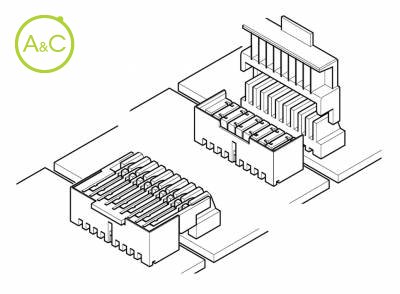

The plug consists of a unique flexible hinge that absorbs circuit board misalignment. Low profile. Only 5.0mm (.197") in mounting height. The flexible construction of the plug allows it to be mated after its PC boards are mounted in their enclosures. High-retention zigzag fork contacts. Low profile The 1.25FJ Connector is only 5.0mm (.197") in mounting height. Allows connection after mating The unique flexible construction of the plug allows it to be mated after its printed circuit boards are mounted in their enclosures. Assures a reliable connection Superior reliability is assured even if the assembly is subjected to external stress and vibration. This sturdiness is due to a secure locking device and the use of JST's high-retention zigzag fork contacts. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
