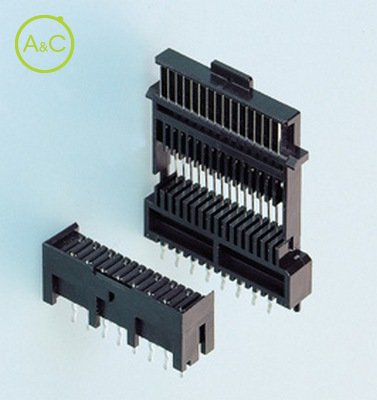

Plug for 1.5FJ Connector

  • 1.5FJ CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 8
  • 16
Article Number 08P-1.5FJ
Number Of Contacts 8
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.5mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.50 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes

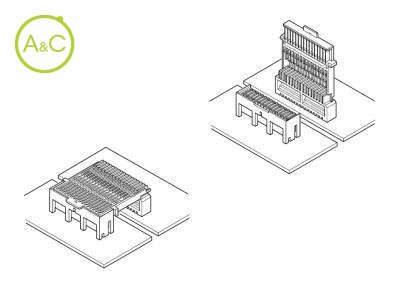

The plug consists of a unique flexible hinge that absorbs circuit board misalignment. The flexible construction of the plug allows it to be mated after its PC boards are mounted in their enclosures. High-retention zigzag fork contacts. Flexible connection absorbs circuit board misalignment After the plug and header are mounted on adjoining boards, an extended hinged connection between them offers greater flexibility. The hinge compensates for slight misalignments between circuit boards to assure a secure connection even if the boards are out of line up to 1.0mm (.039"). Provides a low profile mount and allows connection after mounting This compact, low profile design features 1.5mm (.059") pitch and slim 10.7mm (.421") mounting height. Board-to-board connection is easier because the connection can be made after the installation of the connector mounted printed circuit boards. Assures a reliable connection Superior reliability is assured even when the assembly is subjected to external stress and vibration. This sturdiness is due to a secure locking device and the use of JST's high retention zigzag fork contacts. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
