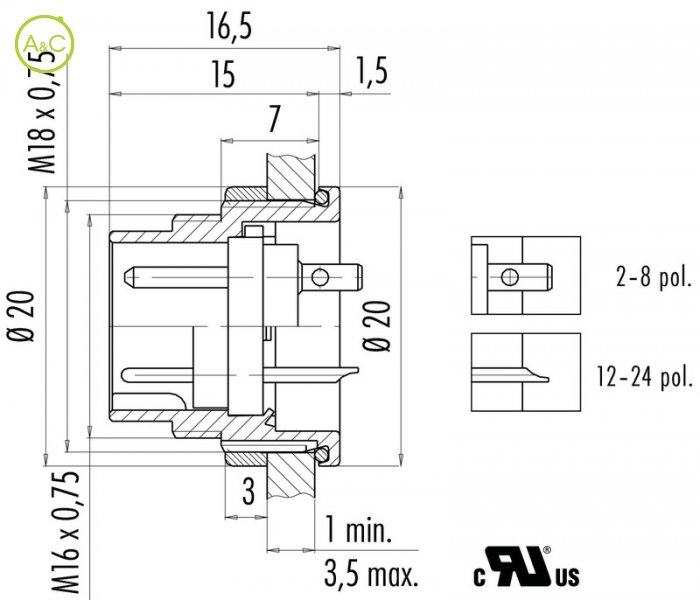

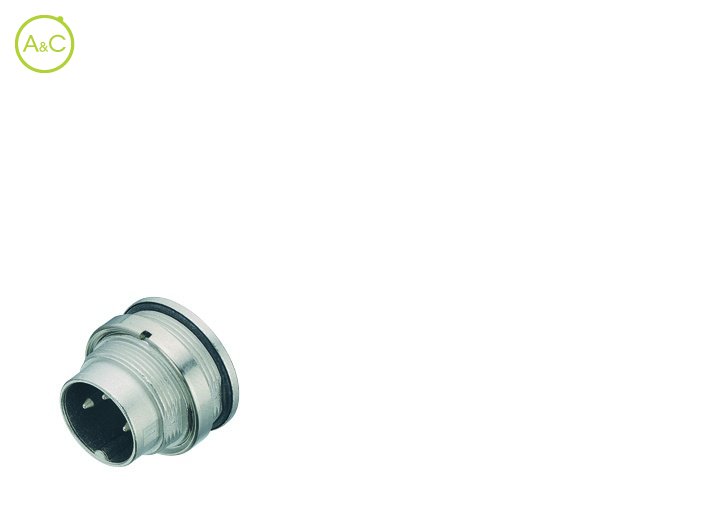

Male panel mount connector
- Solder, front fastened
- UL-approval
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Binder
Binder
Number Of Poles
- 2
- 3 DIN
- 4
- 5
- 5 (Stereo)
- 6 DIN
- 7
- 8 DIN
- 12
- 14
- 16
- 19
- 24
| Article Number | 09 0103 80 02 | 09 0103 89 02 |
| Connector Diameter | 20 mm | 20 mm |
| Number Of Contacts | 2 contacts | 2 contacts |
| Connector Locking System | Screw (M16) | Screw (M16) |
| Termination | Solder | Solder |
| Wire Section | 0.75 mm² | 0.75 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >500 times | >500 times |
| Upper Temperature | +95 °C | +95 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 250 (32) | 250 (32) |
| Rated Impuls Voltage | 1500 V | 1500 V |
| Pollution Degree | 1 (2)* | 1 (2)* |
| Overvoltage Categorie | I (II)* | I (II)* |
| Material Group | III | III |
| Rated Current (40°) | 7 A | 7 A |
| Max. Contact Resistance | 5 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
| Material Of Housing | Zinc diecasting nickel plated | Zinc diecasting nickel plated |
| Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
| Article Number | 09 0107 80 03 | 09 0107 89 03 |
| Connector Diameter | 20 mm | 20 mm |
| Number Of Contacts | 3 DIN contacts | 3 DIN contacts |
| Connector Locking System | Screw (M16) | Screw (M16) |
| Termination | Solder | Solder |
| Wire Section | 0.75 mm² | 0.75 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >500 times | >500 times |
| Upper Temperature | +95 °C | +95 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 250 (32) | 250 (32) |
| Rated Impuls Voltage | 1500 V | 1500 V |
| Pollution Degree | 1 (2)* | 1 (2)* |
| Overvoltage Categorie | I (II)* | I (II)* |
| Material Group | III | III |
| Rated Current (40°) | 7 A | 7 A |
| Max. Contact Resistance | 5 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
| Material Of Housing | Zinc diecasting nickel plated | Zinc diecasting nickel plated |
| Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
| Article Number | 09 0111 80 04 | 09 0111 89 04 |
| Connector Diameter | 20 mm | 20 mm |
| Number Of Contacts | 4 contacts | 4 contacts |
| Connector Locking System | Screw (M16) | Screw (M16) |
| Termination | Solder | Solder |
| Wire Section | 0.75 mm² | 0.75 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >500 times | >500 times |
| Upper Temperature | +95 °C | +95 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 250 (32) | 250 (32) |
| Rated Impuls Voltage | 1500 V | 1500 V |
| Pollution Degree | 1 (2)* | 1 (2)* |
| Overvoltage Categorie | I (II)* | I (II)* |
| Material Group | III | III |
| Rated Current (40°) | 6 A | 6 A |
| Max. Contact Resistance | 5 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
| Material Of Housing | Zinc diecasting nickel plated | Zinc diecasting nickel plated |
| Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
| Article Number | 09 0115 80 05 | 09 0115 89 05 |
| Connector Diameter | 20 mm | 20 mm |
| Number Of Contacts | 5 contacts | 5 contacts |
| Connector Locking System | Screw (M16) | Screw (M16) |
| Termination | Solder | Solder |
| Wire Section | 0.75 mm² | 0.75 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >500 times | >500 times |
| Upper Temperature | +95 °C | +95 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 250 (32) | 250 (32) |
| Rated Impuls Voltage | 1500 V | 1500 V |
| Pollution Degree | 1 (2)* | 1 (2)* |
| Overvoltage Categorie | I (II)* | I (II)* |
| Material Group | III | III |
| Rated Current (40°) | 6 A | 6 A |
| Max. Contact Resistance | 5 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
| Material Of Housing | Zinc diecasting nickel plated | Zinc diecasting nickel plated |
| Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
| Article Number | 09 0119 80 05 | 09 0119 89 05 |
| Connector Diameter | 20 mm | 20 mm |
| Number Of Contacts | 5 (Stereo) contacts | 5 (Stereo) contacts |
| Connector Locking System | Screw (M16) | Screw (M16) |
| Termination | Solder | Solder |
| Wire Section | 0.75 mm² | 0.75 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >500 times | >500 times |
| Upper Temperature | +95 °C | +95 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 60 (32) | 60 (32) |
| Rated Impuls Voltage | 500 V | 500 V |
| Pollution Degree | 1 (2)* | 1 (2)* |
| Overvoltage Categorie | I (II)* | I (II)* |
| Material Group | III | III |
| Rated Current (40°) | 6 A | 6 A |
| Max. Contact Resistance | 5 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
| Material Of Housing | Zinc diecasting nickel plated | Zinc diecasting nickel plated |
| Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
| Article Number | 09 0123 80 06 | 09 0123 89 06 |
| Connector Diameter | 20 mm | 20 mm |
| Number Of Contacts | 6 DIN contacts | 6 DIN contacts |
| Connector Locking System | Screw (M16) | Screw (M16) |
| Termination | Solder | Solder |
| Wire Section | 0.75 mm² | 0.75 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >500 times | >500 times |
| Upper Temperature | +95 °C | +95 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 250 (32) | 250 (32) |
| Rated Impuls Voltage | 1500 V | 1500 V |
| Pollution Degree | 1 (2)* | 1 (2)* |
| Overvoltage Categorie | I (II)* | I (II)* |
| Material Group | III | III |
| Rated Current (40°) | 5 A | 5 A |
| Max. Contact Resistance | 5 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
| Material Of Housing | Zinc diecasting nickel plated | Zinc diecasting nickel plated |
| Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
| Article Number | 09 0127 80 07 | 09 0127 89 07 |
| Connector Diameter | 20 mm | 20 mm |
| Number Of Contacts | 7 contacts | 7 contacts |
| Connector Locking System | Screw (M16) | Screw (M16) |
| Termination | Solder | Solder |
| Wire Section | 0.75 mm² | 0.75 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >500 times | >500 times |
| Upper Temperature | +95 °C | +95 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 125 (32) | 125 (32) |
| Rated Impuls Voltage | 800 V | 800 V |
| Pollution Degree | 1 (2)* | 1 (2)* |
| Overvoltage Categorie | I (II)* | I (II)* |
| Material Group | III | III |
| Rated Current (40°) | 5 A | 5 A |
| Max. Contact Resistance | 5 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
| Material Of Housing | Zinc diecasting nickel plated | Zinc diecasting nickel plated |
| Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
| Article Number | 09 0173 80 08 | 09 0173 89 08 |
| Connector Diameter | 20 mm | 20 mm |
| Number Of Contacts | 8 DIN contacts | 8 DIN contacts |
| Connector Locking System | Screw (M16) | Screw (M16) |
| Termination | Solder | Solder |
| Wire Section | 0.75 mm² | 0.75 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >500 times | >500 times |
| Upper Temperature | +95 °C | +95 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 60 (32) | 60 (32) |
| Rated Impuls Voltage | 500 V | 500 V |
| Pollution Degree | 1 (2)* | 1 (2)* |
| Overvoltage Categorie | I (II)* | I (II)* |
| Material Group | III | III |
| Rated Current (40°) | 5 A | 5 A |
| Max. Contact Resistance | 5 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) | PBT (UL 94 V-0) |
| Material Of Housing | Zinc diecasting nickel plated | Zinc diecasting nickel plated |
| Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
| Article Number | 09 0131 80 12 |
| Connector Diameter | 20 mm |
| Number Of Contacts | 12 contacts |
| Connector Locking System | Screw (M16) |
| Termination | Solder |
| Wire Section | 0.25 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +95 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 3 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | Zinc diecasting nickel plated |
| Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Fiche produit | Télécharger la fiche produit |
| Article Number | 09 0453 80 14 |
| Connector Diameter | 20 mm |
| Number Of Contacts | 14 contacts |
| Connector Locking System | Screw (M16) |
| Termination | Solder |
| Wire Section | 0.25 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +95 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 3 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | Zinc diecasting nickel plated |
| Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Fiche produit | Télécharger la fiche produit |
| Article Number | 09 0507 80 16 |
| Connector Diameter | 20 mm |
| Number Of Contacts | 16 contacts |
| Connector Locking System | Screw (M16) |
| Termination | Solder |
| Wire Section | 0.25 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +95 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 3 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | Zinc diecasting nickel plated |
| Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Fiche produit | Télécharger la fiche produit |
| Article Number | 09 0463 80 19 |
| Connector Diameter | 20 mm |
| Number Of Contacts | 19 contacts |
| Connector Locking System | Screw (M16) |
| Termination | Solder |
| Wire Section | 0.25 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +95 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 3 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | Zinc diecasting nickel plated |
| Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Fiche produit | Télécharger la fiche produit |
| Article Number | 09 0497 80 24 |
| Connector Diameter | 20 mm |
| Number Of Contacts | 24 contacts |
| Connector Locking System | Screw (M16) |
| Termination | Solder |
| Wire Section | 0.14 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +95 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 (32) |
| Rated Impuls Voltage | 500 V |
| Pollution Degree | 1 (2)* |
| Overvoltage Categorie | I (II)* |
| Material Group | III |
| Rated Current (40°) | 1 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | Zinc diecasting nickel plated |
| Remark** | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
| Fiche produit | Télécharger la fiche produit |
Les propriétés diffèrent selon les variantes et sous-variantes
