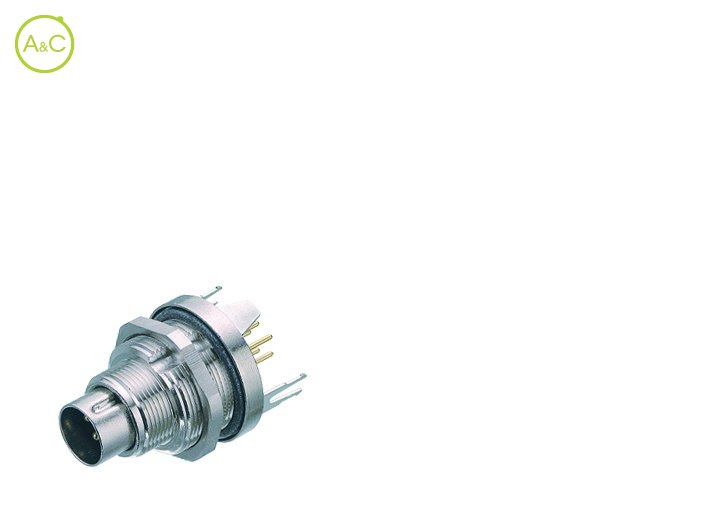

Male panel mount connector

  • Dip solder, front fastened with shielding sheet 6 mm

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 7
  • 8
Article Number 09 0403 30 02
Connector Diameter 15 mm
Number Of Contacts 2 contacts
Connector Locking System Screw (M9)
Termination Dip solder
Protection Degree IP67
Mating Cycles >500 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 125
Rated Impuls Voltage 1500 V
Pollution Degree 1
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA (UL 94 V-0)
Material Of Housing CuZn (Brass nickel plated)
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
