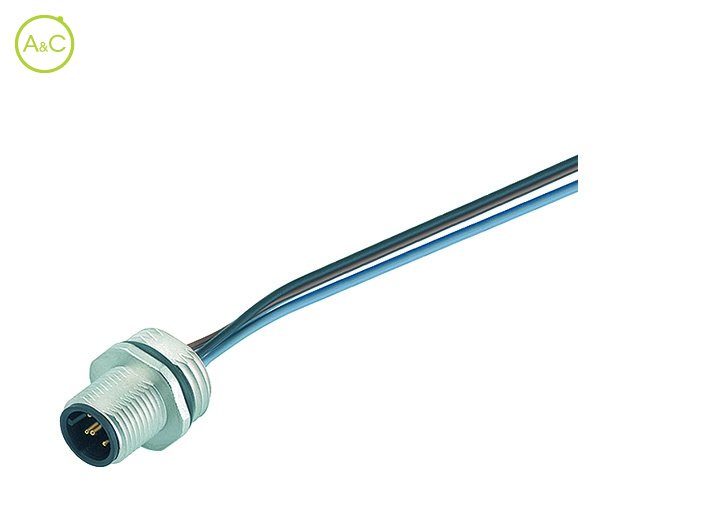

Male panel mount connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	76 0131 0011 00004 0200	09 3431 700 04	76 2131 0111 00004 0200	76 2231 0111 00004 0200
Old Article Number	09 3431 00 04		09 3431 282 04	09 3431 828 04
Connector Diameter	18 mm	18 mm	18 mm	18 mm
Number Of Contacts	4 contacts	4 contacts	4 contacts	4 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)
Termination	Single wires	Single wires	Single wires	Single wires
Wire Section	0.25 mm²	0,25 mm²	0.25 mm²	0.25 mm²
Protection Degree	IP68	IP68	IP68	IP68
Mating Cycles	>100 times	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Rated Voltage	250	250	250	250
Rated Impuls Voltage	2500 V	2500 V	2500 V	2500 V
Pollution Degree	3	3	3	3
Overvoltage Categorie	II	II	II	II
Material Group	II	II	II	II
Rated Current (40°)	4 A	4 A	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA	PA	PA
Material Of Housing	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated	Stainless steel	Stainless steel
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	76 0131 0011 00005 0200	09 3441 700 05	76 2131 0111 00005 0200	76 2231 0111 00005 0200
Old Article Number	09 3441 00 05		09 3441 282 05	09 3441 828 05
Connector Diameter	18 mm	18 mm	18 mm	18 mm
Number Of Contacts	5 contacts	5 contacts	5 contacts	5 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)
Termination	Single wires	Single wires	Single wires	Single wires
Wire Section	0.25 mm²	0,25 mm²	0.25 mm²	0.25 mm²
Protection Degree	IP68	IP68	IP68	IP68
Mating Cycles	>100 times	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Rated Voltage	60	125	60	60
Rated Impuls Voltage	1500 V	1500 V	1500 V	1500 V
Pollution Degree	3	3	3	3
Overvoltage Categorie	II	II	II	II
Material Group	II	II	II	II
Rated Current (40°)	4 A	4 A	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA	PA	PA
Material Of Housing	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated	Stainless steel	Stainless steel
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	76 0131 0011 00008 0200	76 0231 0011 00008 0200	76 2131 0111 00008 0200	76 2231 0111 00008 0200
Old Article Number	09 3481 00 08	09 3481 700 08	09 3481 282 08
Connector Diameter	18 mm	18 mm	18 mm	18 mm
Number Of Contacts	8 contacts	8 contacts	8 contacts	8 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)
Termination	Single wires	Single wires	Single wires	Single wires
Wire Section	0.25 mm²	0.25 mm²	0.25 mm²	0.25 mm²
Protection Degree	IP68	IP68	IP68	IP68
Mating Cycles	>100 times	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Rated Voltage	30	30	30	30
Rated Impuls Voltage	800 V	800 V	800 V	800 V
Pollution Degree	3	3	3	3
Overvoltage Categorie	II	II	II	II
Material Group	II	II	II	II
Rated Current (40°)	1.5 A	1.5 A	1.5 A	1.5 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA	PA	PA
Material Of Housing	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated	Stainless steel	Stainless steel
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Article Number	76 0131 0111 00012 0200	76 0231 0111 00012 0200
Old Article Number	09 3491 00 12	09 3491 700 12
Connector Diameter	18 mm	18 mm
Number Of Contacts	12 contacts	12 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Single wires	Single wires
Wire Section	0.14 mm²	0.14 mm²
Protection Degree	IP68	IP68
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	30	30
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	1.5 A	1.5 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA
Material Of Housing	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated
Fiche produit	Télécharger la fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
