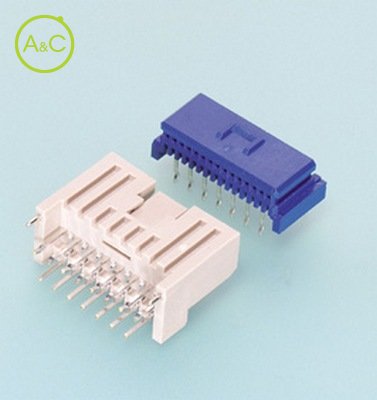

Plug for JET Connector

  • JET CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 9
  • 15
Article Number 09P-JET
Number Of Contacts 9
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.25mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.25 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes

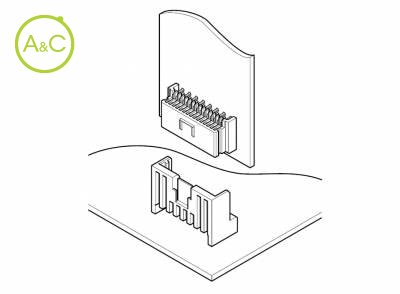

Self-supporting style board-to-board connectors. Both secure lock and friction lock type receptacles are available. The connector halves can be easily mated, yet have a high retention force because of the housing lock mechanism. Good connection is assured even after severe shock & vibration Because of their construction, even severe shocks and long periods of vibration will not cause circuit interruption. Both secure lock and friction lock connectors are available. Correct and secure mating The connector halves can be easily mated, yet have a high retention force because of the housing lock mechanism. RoHS Compliant
