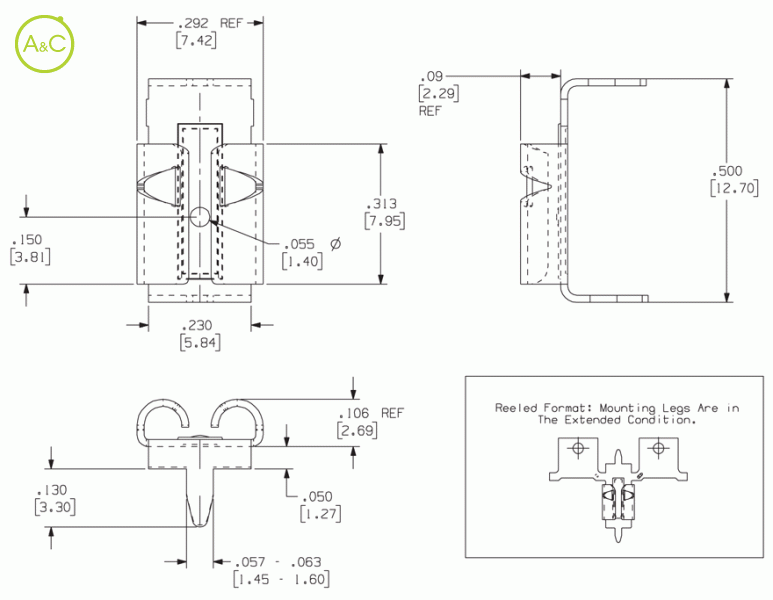

0.205" (5.21mm) and 0.250" (6.35mm) Tab Receptacles

  • Mating type Horizontal
  • With dimple 1,40 mm

Insertion Force-max.

  • 5.0 lbs.
  • 10.0 lbs.
Article Number 1093
Remark* With steel test tab
Packaging Loose
Extra Description With dimple 1,40 mm
Mating Terminal Size 0.250" x 0.032" (6.35mm x 0.81mm) Tab 0.205" x 0.032" (5.21mm x 0.81mm) Tab
Material Thickness / Type 0.016" (0.41mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating 20 Amperes
Mating Type Horizontal
Mounting Type Outward or Inward Splay
Mounting Hole Diameter 2 holes 0.063" ±0.003" (1.6mm ±0.076mm) on 0.500" ±0.003" (12.7mm ±0.076mm) centers
Resistance Rating 10mOhm Max
Mating Entry Horizontal
Temperature Rating -65° to 85°C
Withdrawal Force-max. 2.0 lbs. (8.90N)*
Pieces Per Reel (loose Part No.) NA
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
