Housing for SCN Connector

  • SCN CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
Article Number 10P-SCN
Number Of Contacts 10
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.5mm Pitch Board-in Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 3 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes

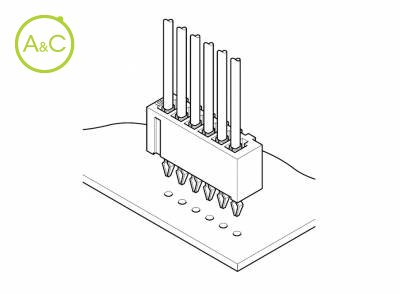

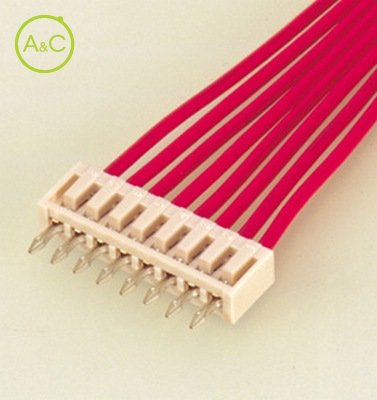

This 2.5mm (.098") pitch multi-circuit board-in connector meets the needs for high-density mounting on printed circuit boards efficiently and economically. The connector can be used for VCRs, car stereo systems, audio products, and many other consumer-oriented electronic products. Housing lances The lances on the resilient housing ensure easy and secure insertion into the housing. Secure mounting on printed circuit boards The solder tail of the contact has a compliant retention feature, making insertion into printed circuit boards easy, and ensuring secure mounting. Two types of contacts Type A The compliant solder tail of this contact is split in two for greater deflection. This promotes easy insertion and secure mounting on printed circuit boards. Type B The two halves of the compliant solder tail are joined at the tip. This additional support provides a sturdy pin that resists deformation during shipping and handling. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
