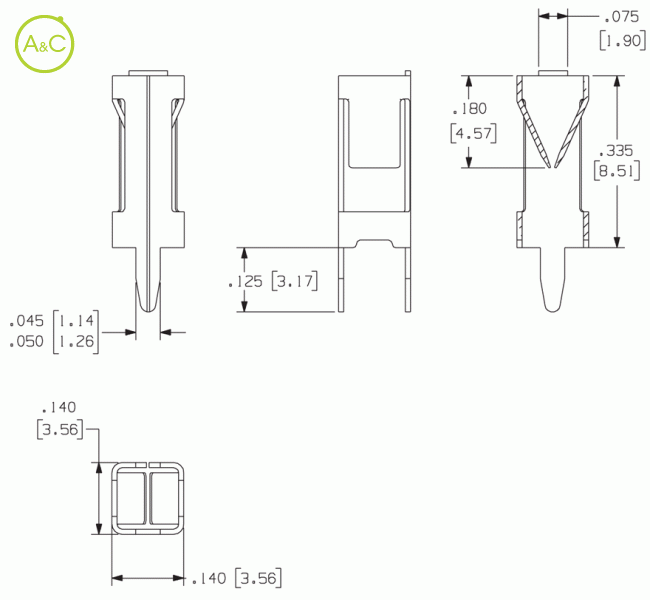

Top Entry 2 Beam Box Receptacles

Packaging

  • Loose
  • Reeled
Article Number 1187
Mating Terminal Size 0.025" to 0.095" (0.64mm to 2.41mm) round or square and 0.032" x 0.110" Blade
Material Thickness / Type 0.010" (0.25mm) C51000 Phosphor Bronze
Standard Finish 100% Tin over Copper
Current Rating Ul 10 Amperes
Current Rating C-ul 10 Amperes
Ul File Number E361770
Applicator System Reeled: Model 9700, 9700 XY
Mating Type Vertical
Mounting Type Outward Splay
Mounting Hole Diameter 2 holes 0.050" ±0.003" (3.81mm ±0.076mm) on 0.130" ±0.003" (3.302mm ±0.003mm) centers
Resistance Rating 10mOhm Max
Mating Entry Top
Temperature Rating -65° to 105°C
Insertion Force-max. Application Dependent / Submit Mating Terminal Sample to Factory.
Withdrawal Force-max. Application Dependent / Submit Mating Terminal Sample to Factory.
Pieces Per Reel (loose Part No.) NA
Pieces Per Reel (reeled Part No.) /
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
