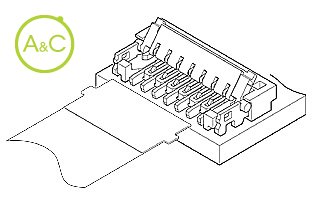

Female Connector for FXV Connector

  • FXV CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 11
  • 13
  • 15
  • 17
  • 21
  • 25
  • 27
  • 29
  • 31
  • 33
  • 35
  • 37
  • 39
  • 43
  • 51
Article Number 11FXV-RSM1-GAN-ETF
Number Of Contacts 11
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.3mm Pitch ZIF Connector for FPC
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.30 mm
Rated Current (ac/dc) 0.2 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes
The FXV connector is a market required space saving and low profile 0.3mm pitch connector, and designed for corresponding to FPC with protrusions. As FPC with protrusions is used for this FXV connector, easy insertion operation, protection of incomplete insertion and miss-insertion are realized. Double ZIF design for easy insertion operation of FPC Self-lock cover design Low profile and space saving FPC with protrusions RoHS Compliant
