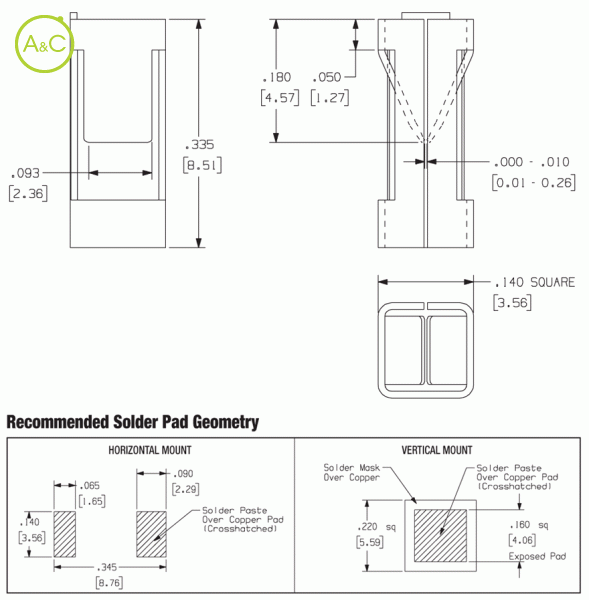

SMT Box Receptacles for High Temp Applications

Packaging

  • Loose
  • Reeled
  • Taped
Article Number 1275
Mating Terminal Size 0.025" (0.64mm) to 0.095" (2.41mm) round or square and 0.032" (0.81mm) x 0.110" Blade
Material Thickness / Type 0.010" (0.25mm) C70250 High Performance Alloy
Standard Finish 100% Tin over Copper
Current Rating Ul 17 Amperes
Current Rating C-ul 17 Amperes
Feeder System Surf-Shooter SMT ™Continuous Strip Feeder. Standard 24mm Tape Feeder
Ul File Number E361770
Resistance Rating 10mΩ Max
Mating Entry Top and Bottom
Temperature Rating Up to 175°C
Pieces Per Reel (loose Part No.) NA
Pieces Per Reel (reeled Part No.) /
Pieces Per Reel (taped Part No.) /
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
