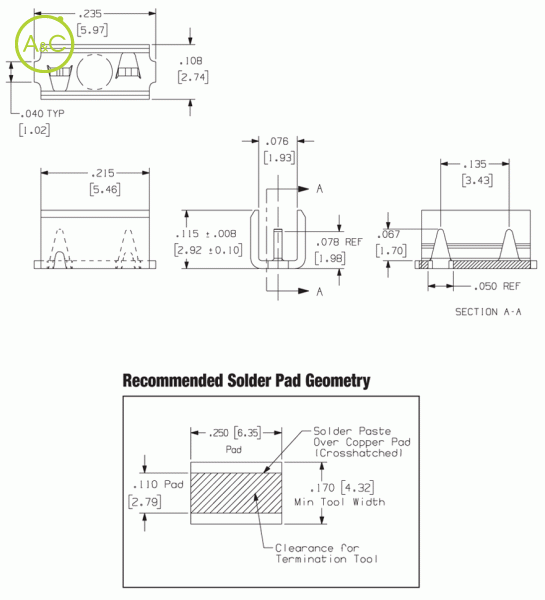

SMT Insulation Piercing Connectors

  • AWG 16-20

Packaging

  • Loose
  • Small reeled
  • Taped
Article Number 1286
Extra Description AWG 16-20
Material Thickness / Type 0.016" (0.41mm) C26000 Brass
Standard Finish Pre-finished 100% Matte Tin over Copper. Edges will be bare.
Current Rating Ul 13 amperes
Current Rating C-ul 13 amperes
Feeder System Standard 12mm Tape Feeder for PN 1286T
Ul File Number E361770
Crimping System Mini Press (for high volume applications) Versa-Crimp (for low volume applications) WTC-1286-1 (for low volume and/or field terminations)
Wire Sizes + Insulation Outside Diameter 16 AWG: 0.077" 18 AWG: 0.068"/0.078"/0.080" 20 AWG: 0.068"/0.073"/0.082"
Pieces Per Reel (loose Part No.) NA
Pieces Per Reel (taped Part No.) /
Pieces Per Reel (small Reel Part No.) /
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
