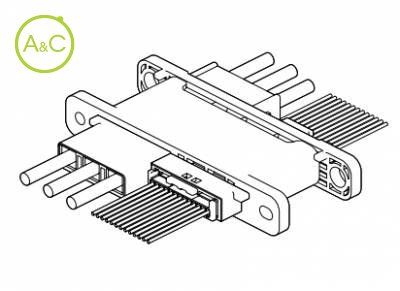

Receptacle for RIZ-L Connector

  • RIZ CONNECTOR L - Type
Télécharger la fiche produit

Number Of Poles

  • 13
Article Number 13LR-RIZ-K4GG-SR3
Number Of Contacts 13
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.5/7.5mm Pitch Disconnectable Crimp Style
Connection Type Wire to Wire Connectors
Pitch / Style 1.5/7.5 mm
Rated Current (ac/dc) Signl/1.0 Power/15 A
Rated Voltage (ac/dc) Signl/50 Power/250 V
Les propriétés diffèrent selon les variantes et sous-variantes
This connector is a hybrid type single-row drawer connector combined signal and power supply circuits connector to connect the units, absorbs misalignment between units, and excels durability. RIZ connector with lever locking device is adopted as applicable socket to prevent incomplete mating. Space saving High durability Hybrid type Signal circuit 1.5mm pitch lever-locking type Standards UL Recognized E60389 CSA Certified LR20812 TUV R50157902 RoHS Compliant
