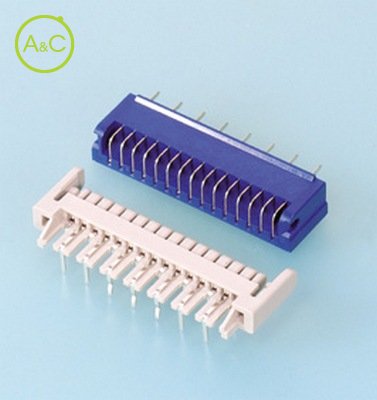

Plug for HQF Connector

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Number Of Poles

Article Number	15P-HQF-E	15P-HQF-E
Number Of Contacts	15	15
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.0mm Pitch Board-to-Board connector	2.0mm Pitch Board-to-Board connector
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	2.00 mm	2.00 mm
Rated Current (ac/dc)	1.0 A	1.0 A
Rated Voltage (ac/dc)	100 V	100 V
Pcb Mount Style	Through-hole Technology (THT)	Through-hole Technology (THT)

Article Number	25PL-HQF-A
Number Of Contacts	25
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.0mm Pitch Board-to-Board connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Les propriétés diffèrent selon les variantes et sous-variantes

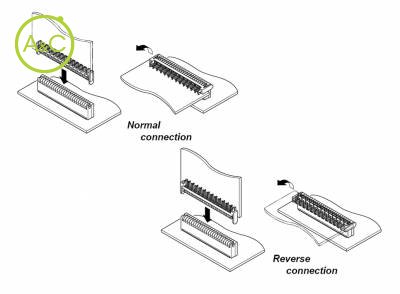

Hinge type board-to-board connectors which allow mated PC boards to move 90 degrees in respect to one another while electricity is turned on. Flexible connection absorbs slight lateral misalignment between boards. Hinged connection With hinged construction, the HQF connector features flexibility. Thus this board-to-board connector allows mated PCB's to move 90 degrees in respect to one another while electricity is turned on. Circuit checks can be made in any rotational position. Flexible connection absorbs slight misalignments between boards Securely connected even if the adjoining boards are laterally out of line. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
