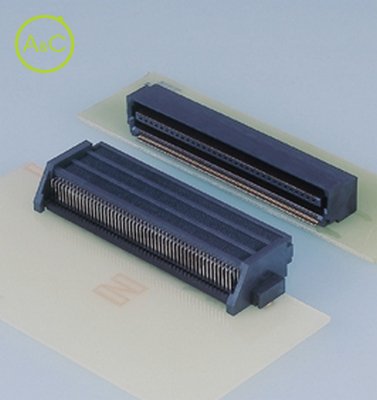

Side Entry Type Receptacle

  • JU CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 200
Article Number 200RS-JUK-G-B
Number Of Contacts 200
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.6mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.60 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT) Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes

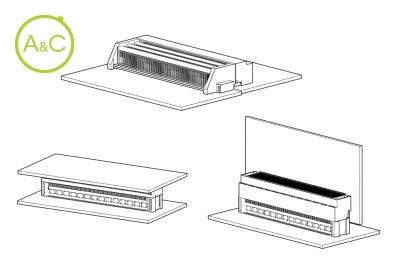

The JU connector has been developed to meet the markets ever increasing demand for small, high-density electronic connectors. With an operating specification of; 0.5 Amps and 50 Volts AC/DC respectively. This 0.6mm pitch board-to-board connector accommodates up to 200 circuits and is available in both top and side entry variations. The housing of this connector is made from LCP (Liquid Crystal Polymer), which makes this more than suitable for SMT and THT reflow environments. Also, tin whiskering, which is sometimes associated with fine pitch lead free products, is alleviated via pure tin (reflowed) plating of the connectors contacts. Higher density contributes 0.6mm (.024") pitch (200 circuits max.) contributes high density PC board design. Various combination Both plug and receptacle are available with top/side entry. Any combination can be chosen to serve its purpose. (All SMT except side receptacle through-hole) Lower insertion force Bellows shaped contact point reduces insertion force. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
