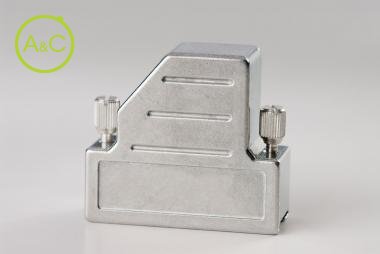

Diecast hoods with side cable output and screw locking

  • Hood s as single parts
Télécharger la fiche produit

Number Of Poles

  • 9
  • 15
  • 25
Article Number 47 09 DC 25 000
Number Of Contacts 9
Upper Temperature +90 °C
Lower Temperature -20 °C
Thread UNC 4-40
Remark* Crimping flange needs te be ordered seperately
Material Zn alloy
Extra Information Easy assembling by means of pre-tapped threads Extreme mechenical working stress Optimum RF shielded in conjunction with crimp flanged
Locking Style knurled screw
Cable Exit Angled 1x40°
Cable Fixing Crimp flange
Cable Diameter Internal Cable Clamp 4-10
Material/surface Locking Screws Diecast St tin plated
Material/surface Cover Screws ST Zinc plated
Les propriétés diffèrent selon les variantes et sous-variantes
Accessoires
55 24 MT
Thumb screw tinnen with slote fitting for diecast hoods
55 24 M3T
Thumb screw tinnen with slote fitting for diecast hoods
55 20 Z4T
Socket head cap screw ISO4762 fitting for diecast hoods
55 20 Z3T
Socket head cap screw ISO4762 fitting for diecast hoods
KT 07 KB
Cable bushing for series 7,103,104,07DC,17DC,47DC,77DC,101DC,104DC
5815GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5815KDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5825GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
5837GDC
Cable clamps for series 07,103,104,07DC,17DC,47DC,77DC,104DC,101DC,117DC,147DC
