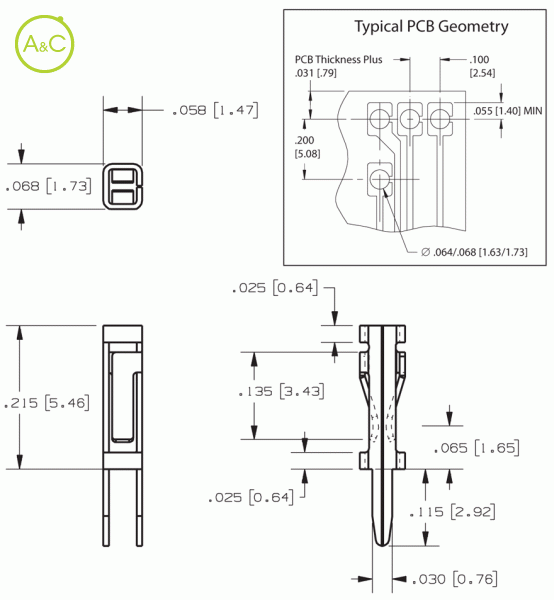

0.025" (0.64mm) Box Receptacles - Top Entry

  • General
Article Number 6101
Packaging Reeled
Mating Terminal Size 0.025" (0.64mm) Rd. or Sq.
Material Thickness / Type 0.008" (0.20mm) C51000 Phosphor Bronze
Standard Finish 100% Tin over Copper
Current Rating Ul 3 Amperes
Current Rating C-ul 3 Amperes
Ul File Number E361770
Applicator System Model 9700, 9700 XY
Mating Type Vertical
Mounting Type Outward Splay
Resistance Rating 10mOhm Max
Mating Entry Top
Temperature Rating -65° to 105°C
Insertion Force-max. Application Dependent / Submit Mating Terminal Sample to Factory.
Withdrawal Force-max. Application Dependent / Submit Mating Terminal Sample to Factory.
Pieces Per Reel (reeled Part No.) 10000
Fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
