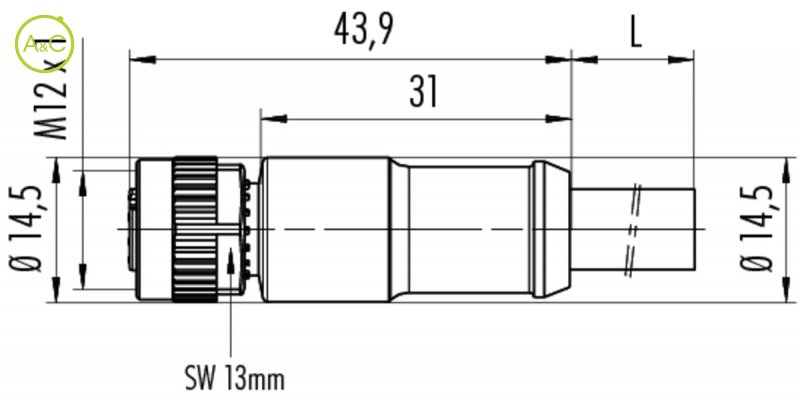

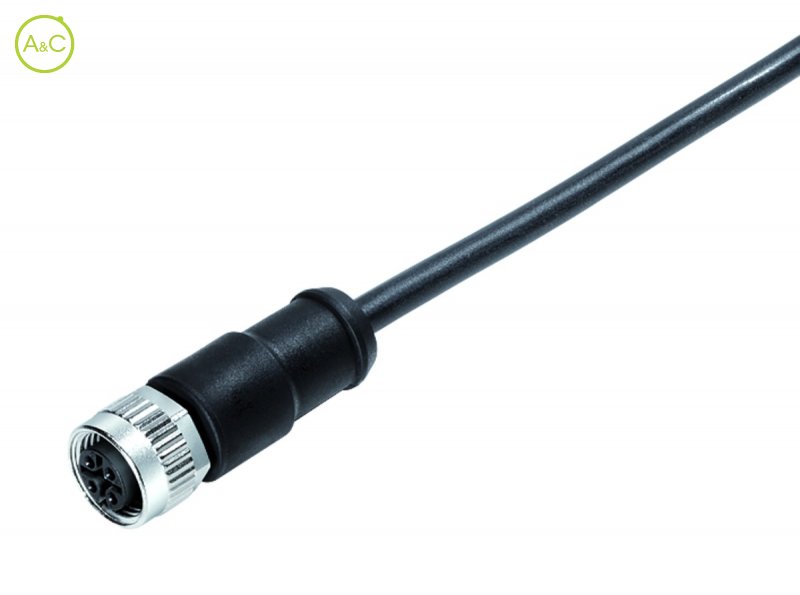

Female cable connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Binder
Binder
Number Of Poles
- 4
| Article Number | 77 0606 0000 50704 0200 | 77 0606 0000 50704 0500 |
| Color | Black | Black |
| Connector Diameter | 14.5 mm | 14.5 mm |
| Number Of Contacts | 4 contacts | 4 contacts |
| Connector Locking System | Screw (M12-A) | Screw (M12-A) |
| Termination | Moulded | Moulded |
| Wire Section | 1.5 mm² | 1.5 mm² |
| Protection Degree | IP69K | IP69K |
| Mating Cycles | >100 times | >100 times |
| Upper Temperature | +90 °C | +90 °C |
| Lower Temperature | -25 °C | -25 °C |
| Rated Voltage | 250 | 250 |
| Rated Impuls Voltage | 2500 V | 2500 V |
| Pollution Degree | 3 | 3 |
| Overvoltage Categorie | II | II |
| Material Group | II | II |
| Rated Current (40°) | 8 A | 8 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ |
| Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | PUR | PUR |
| Material Of Housing | PUR | PUR |
| Insulation Single Lead | PP | PP |
| Single Lead Structure | 42x0,1 | 42x0,1 |
| Cable Sheath Ø | 5.4 mm | 5.4 mm |
| Conductor Resistance | 60 Ω/km | 60 Ω/km |
| Bending Radius Cable Fixed | min. 5xD | min. 5xD |
| Bending Radius Cable Movable | min. 10xD | min. 10xD |
| Fixing Thread | M12x1,5 | M12x1,5 |
| Wire Gauge | 16 AWG | 16 AWG |
| Fiche produit | Télécharger la fiche produit | Télécharger la fiche produit |
Les propriétés diffèrent selon les variantes et sous-variantes
