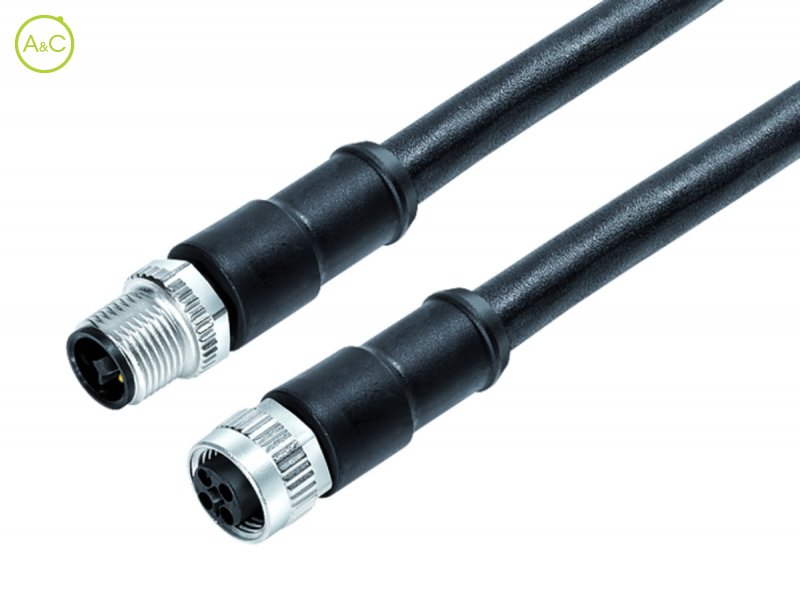

Connecting cable, male cable connector M12x1 & female cable connector M12x1

  • PUR

Number Of Poles

  • 4
Article Number 77 0630 0629 50704 0200 77 0630 0629 50704 0500
Color Black Black

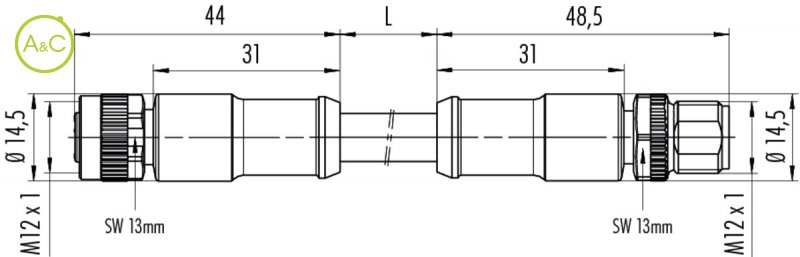

Connector Diameter 14.5 mm 14.5 mm
Number Of Contacts 4 contacts 4 contacts
Connector Locking System Screw(M12-T) Screw(M12-T)
Termination Removable screw Removable screw
Wire Section 1.5 mm² 1.5 mm²
Protection Degree IP67 IP67
Mating Cycles >50 times >50 times
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 630 630
Rated Impuls Voltage 6000 V 6000 V
Pollution Degree 3 3
Overvoltage Categorie III III
Material Group III III
Rated Current (40°) 12 A 12 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact CuSn (Bronze), CuZn (Brass) CuSn (Bronze), CuZn (Brass)
Plating Au (Gold) Au (Gold)
Material Of Insert PA PA
Cable Outlet 8-10 mm 8-10 mm
Wire Gauge 16 AWG 16 AWG
Material Housing Of Cable PUR PUR
Fiche produit Télécharger la fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
