Female cable connector

Avez-vous des questions sur ce produit?

Plus d’infos sur cette marque:

Article Number	99 0686 19 03
Connector Diameter	20.2 mm
Number Of Contacts	2+PE contacts
Connector Locking System	Screw (M12-S)
Termination	Screw clamp with insulated ferules
Wire Section	2.5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	630
Rated Impuls Voltage	6000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	16 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Cable Outlet
Fiche produit	Télécharger la fiche produit

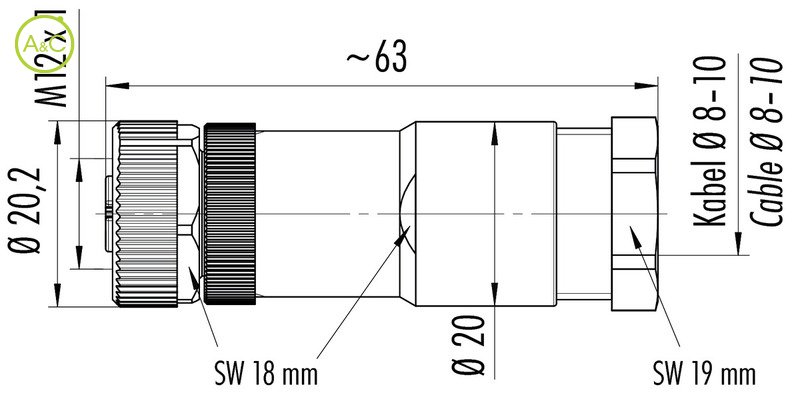

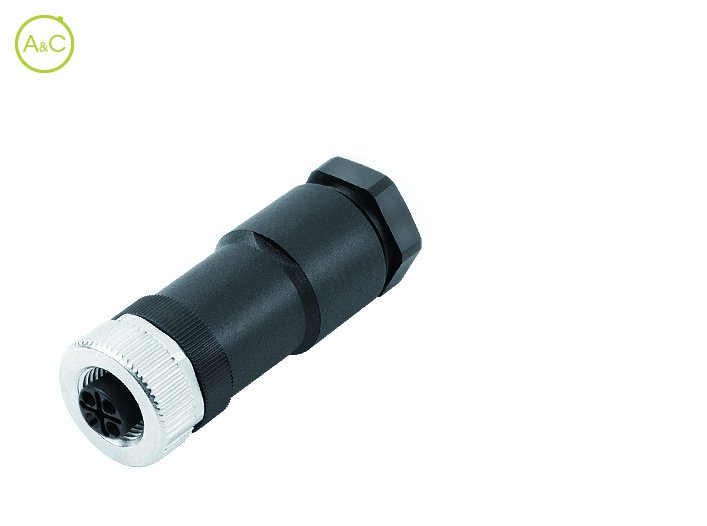

Article Number	99 0690 19 04
Connector Diameter	20.2 mm
Number Of Contacts	3+PE contacts
Connector Locking System	Screw (M12-S)
Termination	Screw clamp with insulated ferules
Wire Section	1.5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	630
Rated Impuls Voltage	6000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	12 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA
Cable Outlet	8-10 mm
Fiche produit	Télécharger la fiche produit

Les propriétés diffèrent selon les variantes et sous-variantes
