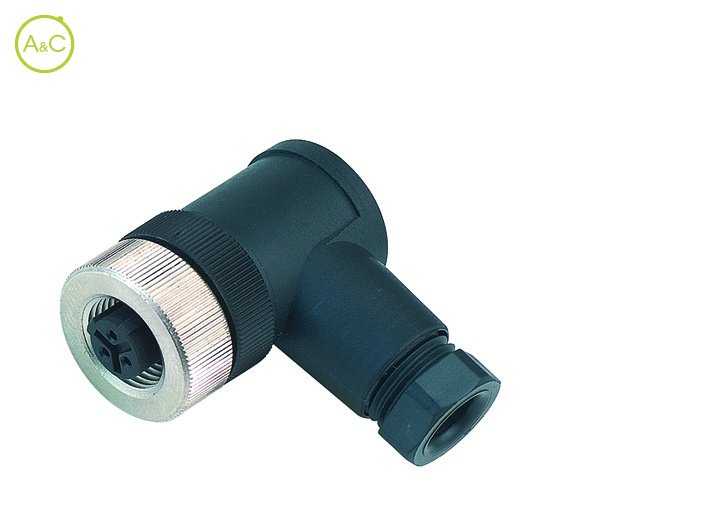

Female angled connector
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
Binder
Binder
Number Of Poles
- 2+PE
| Article Number | 99 2530 24 03 |

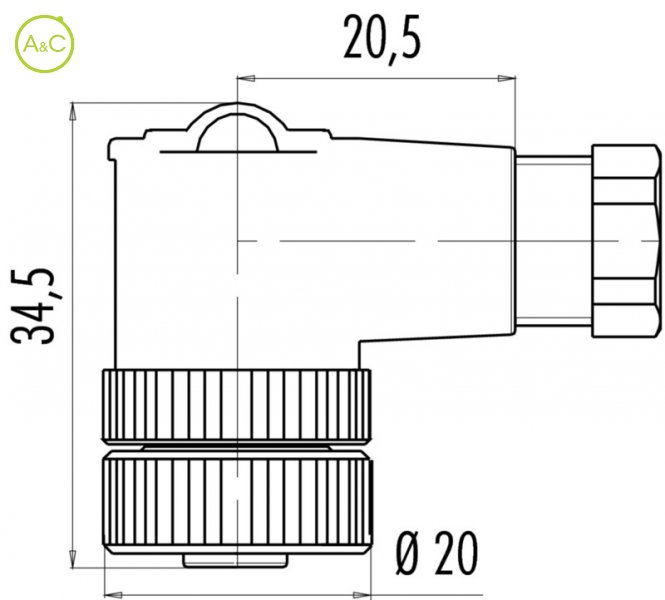

| Connector Diameter | 20 mm |
| Number Of Contacts | 2+PE contacts |
| Connector Locking System | Screw (M12-US) |
| Termination | Screw |
| Wire Section | 0.75 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >50 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 250 |
| Rated Impuls Voltage | 2500 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 4 A |
| Max. Contact Resistance | 8 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | CuSnZn (Optalloy) |
| Material Of Insert | PA |
| Material Of Housing | PA |
| Cable Outlet | 4-6 mm |
| Fiche produit | Télécharger la fiche produit |
Les propriétés diffèrent selon les variantes et sous-variantes
