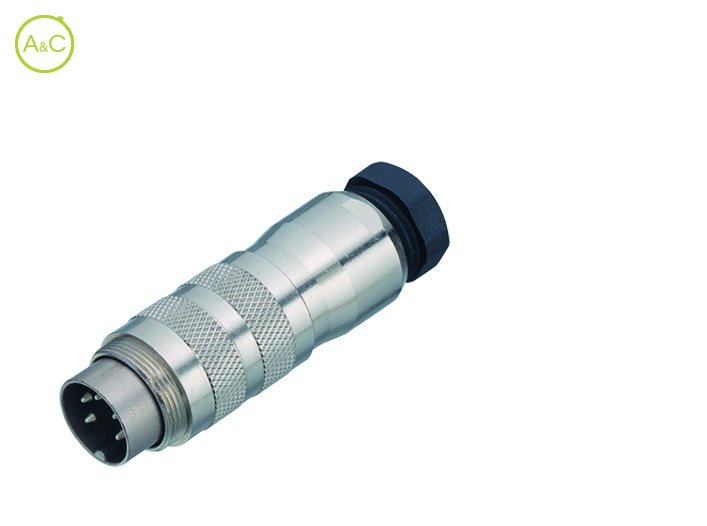

Male cable connector

  • With shielding ring, shieldable
  • UL-approval

Number Of Poles

  • 2
  • 3 DIN
  • 4
  • 5
  • 5 (Stereo)
  • 6 DIN
  • 7
  • 7 DIN
  • 8 DIN
  • 12
  • 14
  • 16
  • 19
  • 24
Article Number 99 5601 15 02 99 5601 19 02

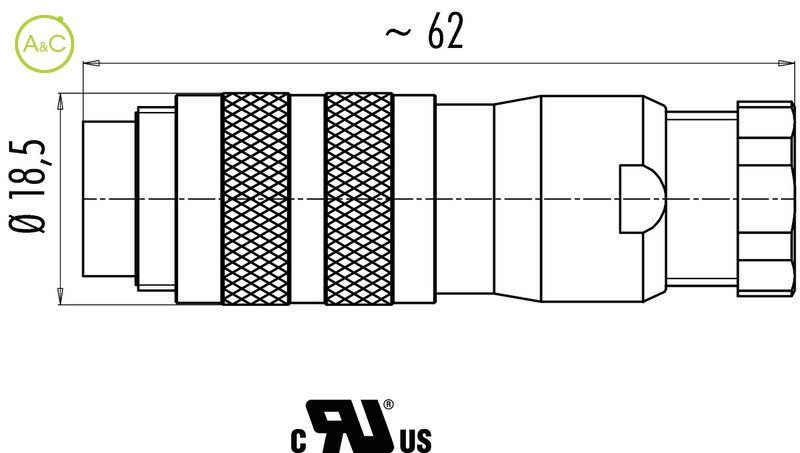

Connector Diameter 18.5 mm 18.5 mm
Number Of Contacts 2 contacts 2 contacts
Connector Locking System Screw (M16) Screw (M16)
Termination Solder Solder
Wire Section 0.75 mm² 0.75 mm²
Protection Degree IP67 IP67
Mating Cycles >500 times >500 times
Upper Temperature +95 °C +95 °C
Lower Temperature -40 °C -40 °C
Rated Voltage 250 (32) 250 (32)
Rated Impuls Voltage 1500 V 1500 V
Pollution Degree 1 (2)* 1 (2)*
Overvoltage Categorie I (II)* I (II)*
Material Group III III
Rated Current (40°) 7 A 7 A
Max. Contact Resistance 5 mΩ 5 mΩ
Material Of Contact CuZn (Brass) CuZn (Brass)
Material Of Insert PBT (UL 94 V-0) PBT (UL 94 V-0)
Material Of Housing CuZn (Brass, nickel plated) CuZn (Brass, nickel plated)
Cable Outlet 6-8 mm 6-8 mm
Remark** *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Fiche produit Télécharger la fiche produit Télécharger la fiche produit
Les propriétés diffèrent selon les variantes et sous-variantes
