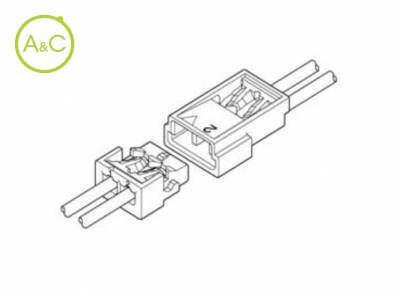

Plug Housing for ACH Connector

  • ACH CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 2
Article Number ACHTP-02V-S
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.2mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type Wire to Wire Connectors
Pitch / Style 1.20 mm
Rated Current (ac/dc) 2 A
Rated Voltage (ac/dc) 50 V
Les propriétés diffèrent selon les variantes et sous-variantes
This is the wire-to-wire connector for DC power supply compatible with the ACH connector for PC board. Connector for DC power supply Common use with the existing socket contact of ACH connector RoHS Compliant
