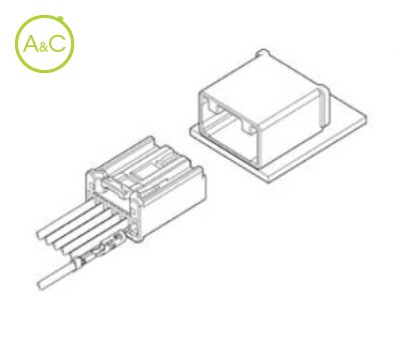

Female Connector Single Row

  • AIT-II CONNECTOR
Télécharger la fiche produit

Color

  • Black
  • Gray
  • Green
  • Orange
  • White
Article Number AIT2PB-06-1AK AIT2PB-10-1AD
Number Of Contacts 6 10
Upper Temperature +105 °C +105 °C
Lower Temperature -40 °C -40 °C
General Description 2.54mm Pitch Disconnectable Crimp Style (Wire to Board) 2.54mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type Automotive Automotive
Pitch / Style 2.54 mm 2.54 mm
Rated Current (ac/dc) 5 A 5 A
Rated Voltage (ac/dc) 14 V 14 V
Pcb Mount Style Through-hole Technology (THT) Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes
0.64 unsealed low-profile connector series for use in a wide range of automotive applications. Ultra Low Profile Connector Over 30% height reduction as compared to the standard USCAR footprints. Variations There are multiple varieties of AIT-II Connectors which can satisfy your needs. RoHS Compliant
