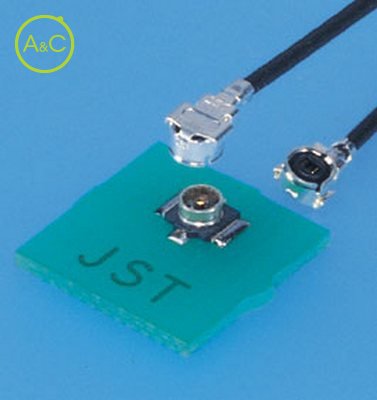

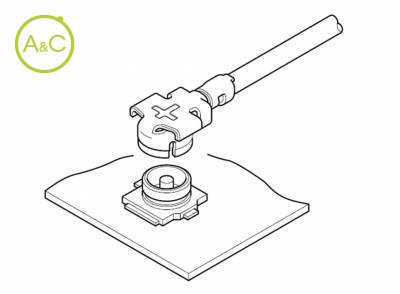

Harness for AYU1 Connector

  • AYU1 CONNECTOR
Télécharger la fiche produit

Cable Diameter

  • 1.13 mm
Article Number AYU1-1S13-SYYYY-ZZZV (LF)
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description Low-profile compact coaxial Connector
Connection Type Printed Circuit Board Connectors
Frequency Range DC to 12 GHz
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes
This is SMT type, space saving and co-axial connector, corresponding to notebook PC, thinner and lighter telecommunications apparatus, etc. Application - UWB, WiMAX, Wireless LAN, Bluetooth, DSRC, Mobile Phones, PDA, GPS, Express, etc. Space saving design Responding to SMT, mounting space of 3mm (.118") x 3mm (.118"), low profile of 2mm (.079") mated height. High performance of electrical feature VSWR is 1.3 max. in the frequency band of 0.045MHz to 3GHz. Embossed taping for automatic mounting The connector is supplied in embossed tape packaging, for mounting by automatic placement machines. RoHS Compliant
