Top Entry Shrouded Header THT

  • PHD CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 8
  • 10
  • 12
  • 14
  • 16
  • 18
  • 20
  • 22
  • 24
  • 26
  • 28
  • 30
  • 32
  • 34
Article Number B10B-PHDSS B10B-PHDSS-B
Number Of Contacts 10 10
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description 2mm Pitch Disconnectable Crimp Style 2mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style 2.00 mm 2.00 mm
Rated Current (ac/dc) 3 A 3 A
Rated Voltage (ac/dc) 250 V 250 V
Pcb Mount Style Through-hole Technology (THT) Through-hole Technology (THT)
Remark* Glass-filled nylon Nylon
Les propriétés diffèrent selon les variantes et sous-variantes

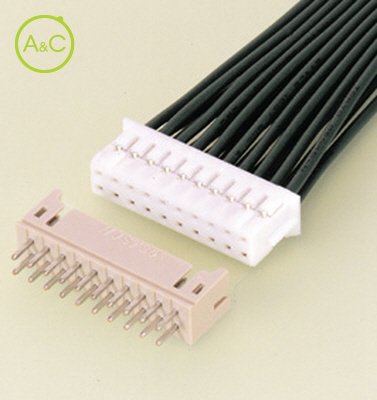

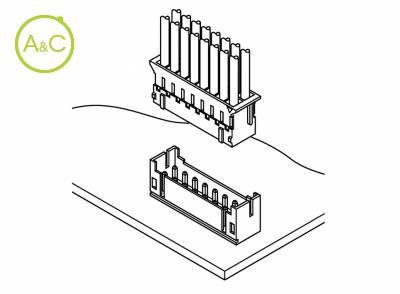

This is a 2.0mm (.079") pitch, crimp style, double-row, wire-to-board connector. It is designed to meet the demand for high density and low-profile connection. Compact 2.0mm (.079") pitch connector, 8.8mm (.346") in height after mounting and 5.0mm (.179") in width. This compact design meets the demand for high-density connection. Reliable contacts The box contact supplies stable contact performance even under conditions of vibration, distortion, low voltage or low current. Fully shrouded header The header is fully shrouded, having walls on all four sides to prevent improper mating and the intrusion of flux and other contaminants. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
