Top Entry Shrouded Header THT Double Row

CZ/CZW CONNECTOR

Avez-vous des questions sur ce produit?

Contactez notre spécialiste du connecteur

Envoyez-moi une offre personnalisée

Télécharger la fiche produit

Plus d’infos sur cette marque:

JST

Number Of Poles

Article Number	B16B-CZWHK-B-1
Number Of Contacts	16
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	B18B-CZWHK-B-1
Number Of Contacts	18
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	B20B-CZWHK-B-1
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	B22B-CZWHK-B-1
Number Of Contacts	22
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	B24B-CZWHK-B-1
Number Of Contacts	24
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	B26B-CZWHK-B-1
Number Of Contacts	26
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	B28B-CZWHK-B-1
Number Of Contacts	28
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	B30B-CZWHK-B-1
Number Of Contacts	30
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	B32B-CZWHK-B-1
Number Of Contacts	32
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	B34B-CZWHK-B-1
Number Of Contacts	34
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	B36B-CZWHK-B-1
Number Of Contacts	36
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	B38B-CZWHK-B-1
Number Of Contacts	38
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Article Number	B40B-CZWHK-B-1
Number Of Contacts	40
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Surface Mount Technology (SMT) Through-hole Technology (THT)

Les propriétés diffèrent selon les variantes et sous-variantes

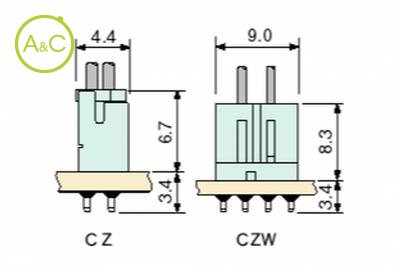

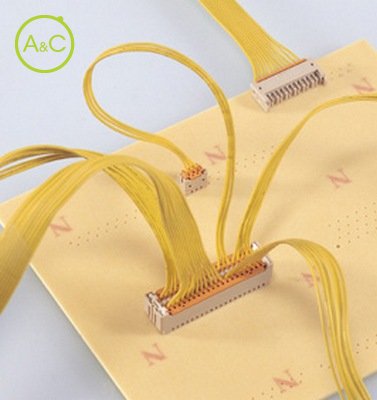

Based upon the 1.5mm (.059") pitch CZ connectors, the CZ family connectors have been expanded to meet the requirements of high density packaging. The CZW connector holder allows dual-row wire-to-board connection using the CZ receptacles, while the TZ (single-row) of TZW (dual-row) allows wire-to-wire connection, also using the CZ receptacles. CZ connector Distortion resistant construction The header is fully shrouded and thus protects the receptacle from damage that could be caused by mating the connectors at an angle or by otherwise mismating the connectors. Compact and low profile The CZ connector features a mounting height of just 6.7mm (.264") for top entry type, and 4.4mm (.173") for side entry type. CZW connector Low insertion force Insertion force is only about 70N for 40 circuit connector. Locking construction The CZW holder has friction locks to be securely held by the CZW header. TZ/TZW connector The TZ connector is applicable to single-row connection, while the TZW connector is for dual-row connection. Applicable to wide range of panel thickness The design of the panel lock part does not allow the wires to be caught there before mounting on the panel. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
