Header THT

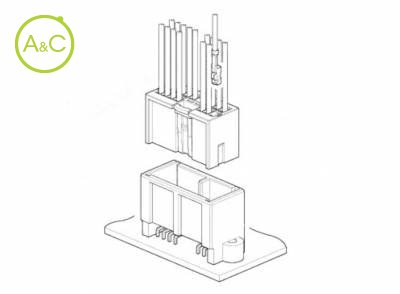

  • MIO CONNECTOR
Télécharger la fiche produit

Number Of Poles

  • 16
Article Number B16B-MIOS
Number Of Contacts 16
Upper Temperature +105 °C
Lower Temperature -40 °C
General Description 2.50mm Pitch Disconnectable Crimp Style
Connection Type Automotive
Pitch / Style 2.50 mm
Rated Current (ac/dc) 5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc) 12 V
Pcb Mount Style Through-hole Technology (THT)
Les propriétés diffèrent selon les variantes et sous-variantes
Low profile type connector for interface of automotive electrical equipment. Low profile Using the short length female terminal, low profile is realized. Solder crack prevention configuration Pin configuration of PC board side connector is designed for solder crack prevention. Reliability Various ideas, such as prevention mechanism for excessive deformed female terminal, detection for incomplete inserted terminal by side retainer, improved terminal retention force, and the anti-misinsertion structure, are included in this connector. RoHS Compliant
