Header for SFV Connector

  • SFV Connector
Télécharger la fiche produit

Number Of Poles

  • 2
Article Number BM02B-SFVH(HF)
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.0mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.00 mm
Rated Current (ac/dc) 1.0 (WG #28) A
Rated Voltage (ac/dc) 300 V
Pcb Mount Style Surface Mount Technology (SMT)
Les propriétés diffèrent selon les variantes et sous-variantes

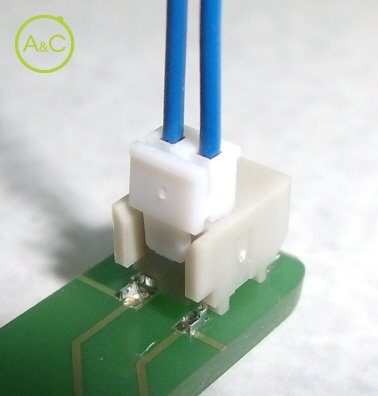

SFV Connector is a wire to board connector for connecting power supply to PCB and withstands high voltage. It is used for power supply of LED backlight in Liquid Crystal Display (LCD) Television sets. Withstands high voltage Secure lock Halogen free EC Directive 2002/95/EC (the RoHS Directive) - Compliant
